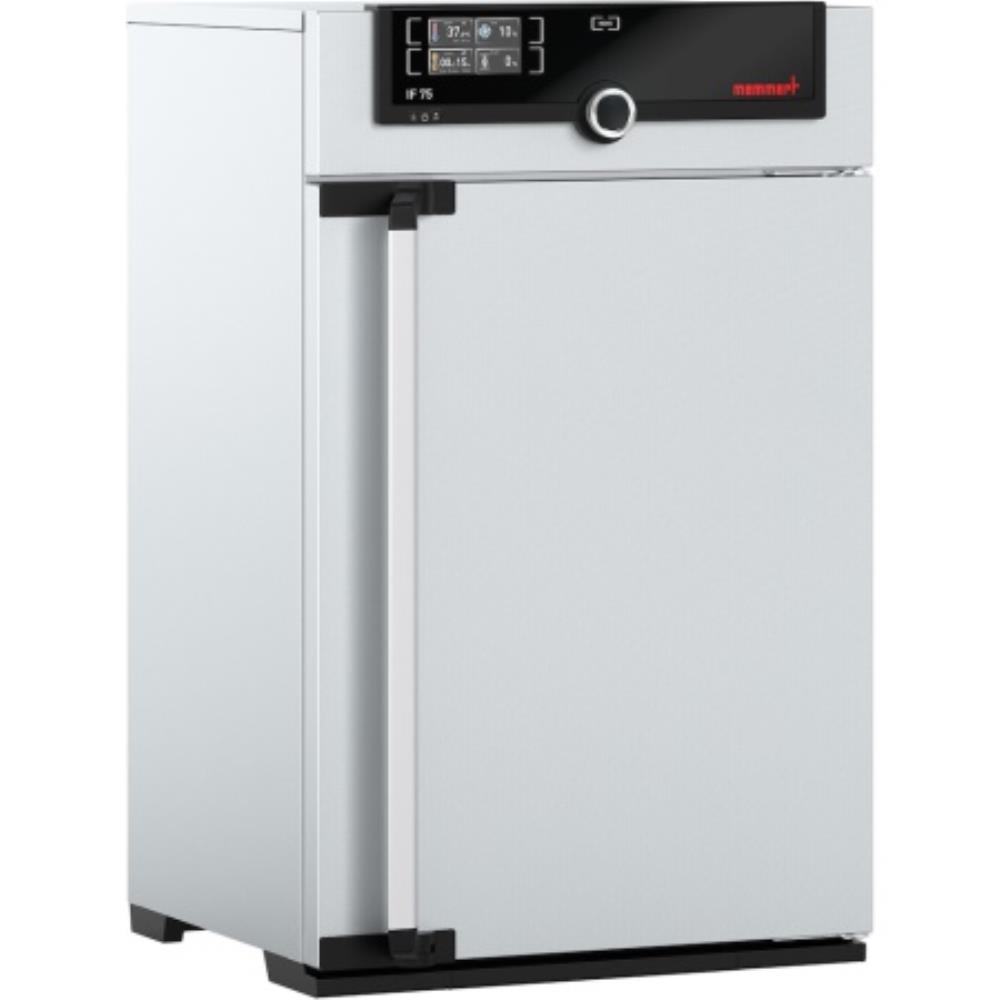

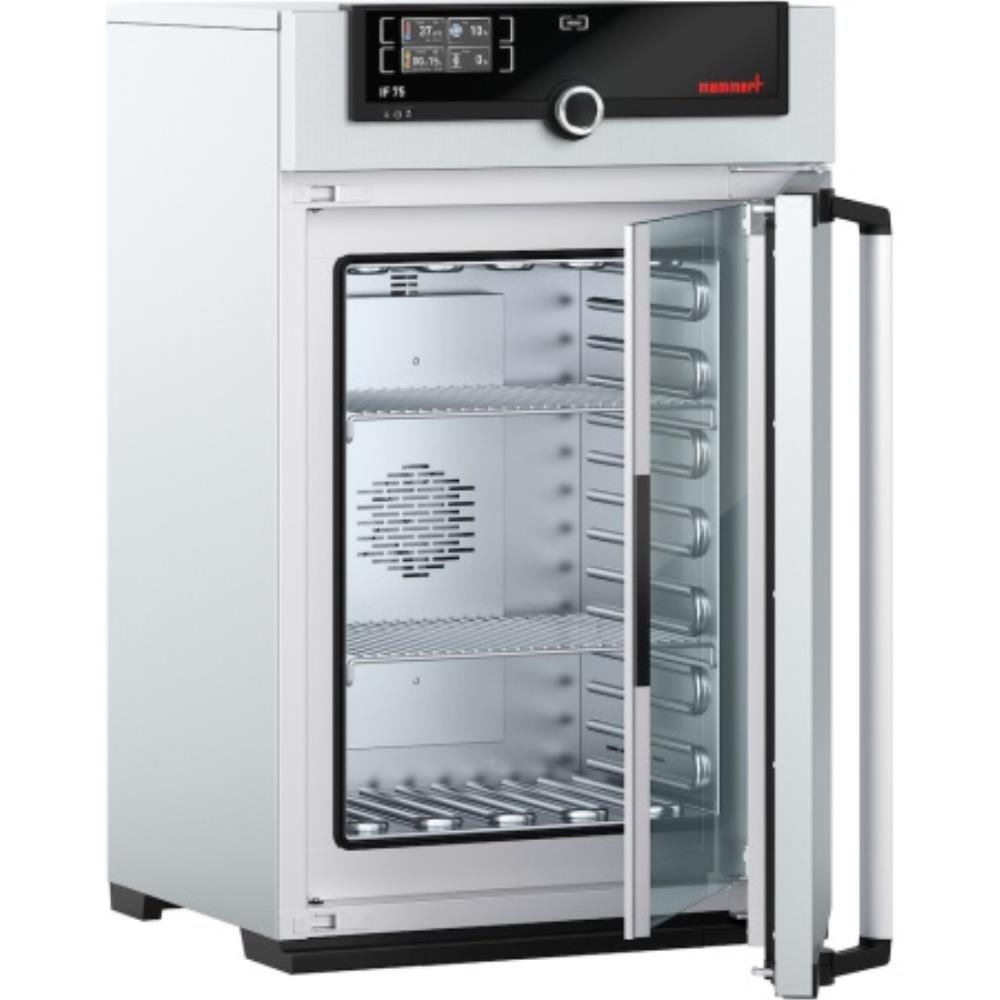

Memmert Incubator IF75 Forced Air Circulation SingleDISPLAY with 2 Grids 74L
Memmert Incubator IF75 Forced Air Circulation SingleDISPLAY with 2 Grids 74L

Memmert Incubator IF75 Forced Air Circulation SingleDISPLAY with 2 Grids 74L

Stock Code: 2776987
Manufacturer Part No: INC8174
Order Now for 21 day delivery
Click Add to Quote for price and delivery
Quantity: - +

Memmert incubators are at home in the world of research, medicine, pharmaceutics and food technology. Organic chamber loads require gentle heating. For this reason, the heating and control system are especially optimised for low temperatures of up to +80 °C. To prevent temperature overshoots, temperature is increased within a very narrow control range and kept exactly at the setpoint value. Models with natural convection or with forced air circulation are available.


Setting temperature range +20 °C to +80 °C


Double doors: outside stainless steel, inside glass- All-round heating on all 4 sides for excellent temperature homogeneity


Fresh air is preheated


The SetpointWAIT function guarantees that the process time does not start until the set temperature is reached at all measuring points


optional for temperature values recorded by the freely positionable Pt100 sensors inside the chamber


Internal data logger with storage capacity of at least 10 years


Works calibration certificate at +37 °C


Warranty is 3 years on parts, 1 year on labour


SingleDISPLAY:


ControlCOCKPIT with one high-resolution TFT colour touch display


Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, programme time, time zones, daylight-saving time


One temperature sensor Pt100 DIN class A in a 4-wire circuit


AtmoCONTROL software for reading out, managing and organizing the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand)


Ethernet interface for reading out protocol log and for online logging


Double overtemperature protection: Electronic temperature monitoring with freely adjustable monitoring temperature TWW/TWB (protection class 3.1 or 2), mechanical temperature limiter TB acc. to DIN 12880


TwinDISPLAY:


ControlCOCKPIT with two high-resolution TFT colour touch displays


Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, time zones, daylight-saving time


Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error


HeatBALANCE function for application specific adjustment of heat output distribution (balance) between the upper and lower heating groups in an adjustment range between -50 % and +50 %


AtmoCONTROL software on a USB stick for programming, managing and transferring programs via Ethernet interface or USB port


Intuitive programming and archiving of ramps and program sequences


Synchronous visualisation of the created program sequence during programming


Application-specific repeat functions (loops) can be inserted within a temperature control program in any place


Simple creation of repeating weekly programs


ControlCOCKPIT with USB port for uploading programs, reading out protocol logs, activating the User-ID function


Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)


Ethernet interface for reading out protocol log, uploading programs and for online logging


Multiple over temperature protection: Electronic temperature monitoring TWW/TWB (protection class 3

DisplaySingleDISPLAY
