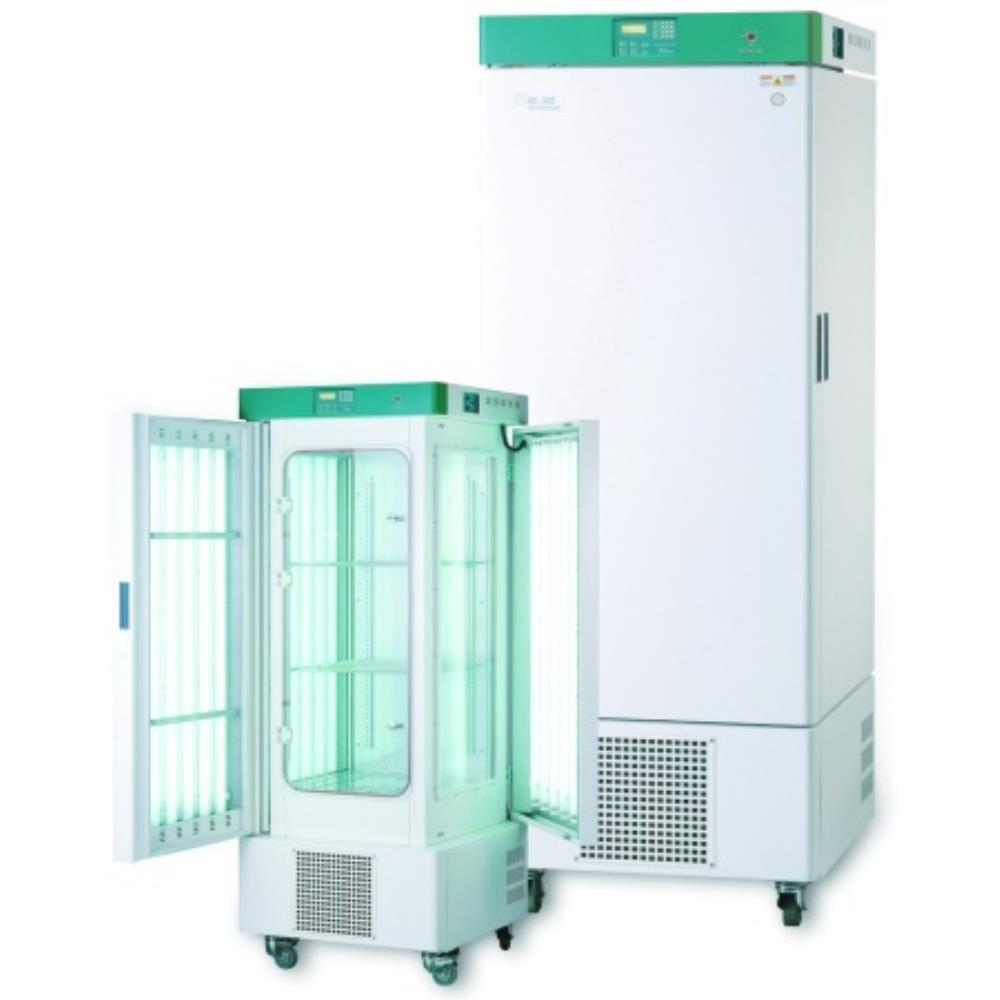

Jeio Tech GC-300TL Plant Growth Chamber Temperature and Light 300L

Stock Code: 2399527
Manufacturer Part No: CHA3000

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

Jeiotech PGC GC series offers varying capacities, up to 1000 L for all your plant growth needs. The streamlined design of the cabinet optimises air flow and temperature uniformity within the cabinet, whilst a user-friendly interface allows easy programming and operation.

General control system

Operating temperature: 5 to 50°C (lamp off)/ 10 to 50°C (lamp on)

Max. to 35,000 Lux for GC-1000TLH, max. to 20,000 Lux for GC-300 series

40 to 80% RH for GC-300TLH (at 20 to 35°C), 50 to 90% RH for GC-1000TLH (at 20 to 35°C)

Max 5,000ppm CO₂ on/off system (optional)

Microprocessor PID control / temperature calibration / automatic tuning

10 step programmable temperature, humidity, and illumination profiles and repeatable steps of up to 999 cycles

Illuminance control system

Uniformed luminescence distribution

Broad distribution of side lamps for hastening the growth of plants

High intensity illumination of upper lamp for light efficient and low thermal load (for GC-1000TLH)

Unique construction for minimization of heat increase from surrounding lamps - tempered glass door blocks heated air from lamps, designed to exhaust heated air through upper vent holes (for GC-1000TLH)

Stable and long lasting lighting through introduction of high frequency electronic ballast lamps

Convenience

Ergonomically designed door construction - inner glass door with silicone and external door with magnetic sealing for dual airtight packing., well designed providing a smooth open for minimization of damage to plants

Wide inner tempered glass door for clear observation of plant growth without affecting inner chamber's environment

Tall plants can be grown inside of the chamber with adjustment of shelf level

Maintenance of water supply are easily performed with a front water tank. (GC-1000TLH) water level check indicated by water level bar in the tank

Water supply during operation is also available for long term test purposes

Adjustable water tank position. (for GC-300TLH)

Detachable condenser air-filter for easy maintenance of refrigerating efficiency - maintenance of air filter no longer cumbersome with our detachable condenser air filter

Casters for easy mobility during installation or relocation

Eco-friendly CFC-free refrigerant use

Safety

Automatic shut off after overheat alarm

Low and empty water level alarm

Power supply leakage breaker

Over current protection

Open door alarm

Lamps setting

Control illumination values with the below lamp setting arrangements.
