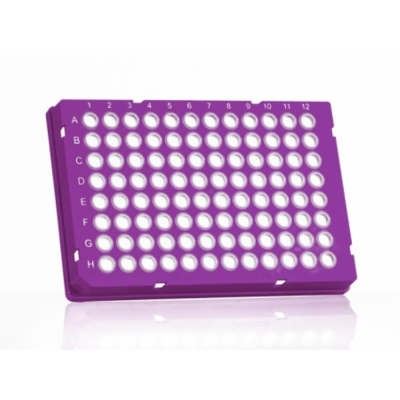

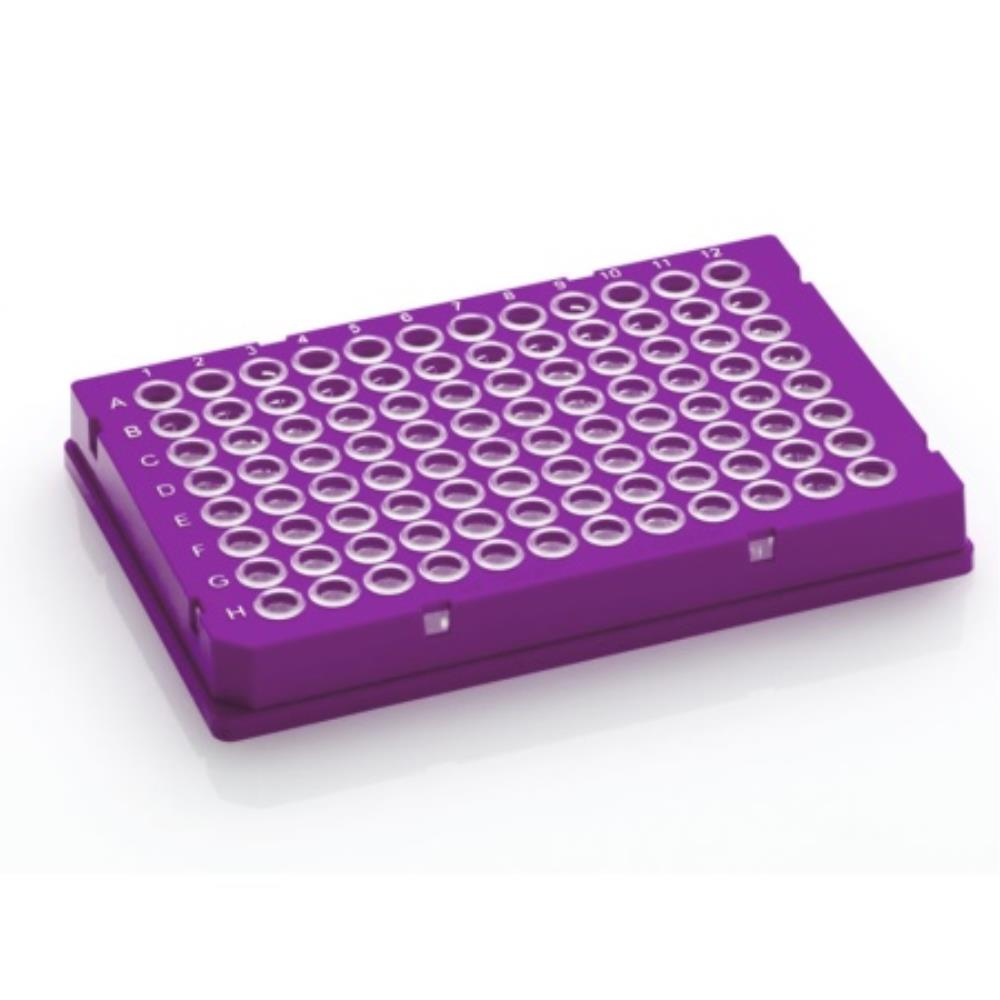

Azenta Life Sciences FrameStar 96 Well PCR Plate Skirted Low Profile Purple Frame Clear Wells H1 Cut

Stock Code: 1021463
Manufacturer Part No: PCR1220

Order Now for 3 day delivery

Descriptions

The low profile wells of this plate are shorter than "standard" profile wells, which decrease the "dead space" between the heated lid of the thermal cycler and the sample in the well. This eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction. This is especially recommended for reaction volumes below 20µL. The rigid polycarbonate skirt of this design eliminates warping and distortion during PCR, and makes it ideal for use with robotic systems.

Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen

Stackable

Ultra-smooth, uniform, thin-walled polypropylene wells for optimum PCR and real-time (RT-qPCR) results

﹤0.1mL (100µL) working volume, 0.2mL (200µL) total well capacity

Rigid polycarbonate frame for added mechanical stability

Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results

Improved seal integrity due to thermal stability of frame

Alphanumeric grid reference to aid well and sample identification

Cut corner H1

Recommended for low volume PCR

Ideal for use with robotic systems

Compatible with standard multichannel pipettes

Available with clear wells and a variety of frame colour options (PCR1220, PCR1222, PCR1232, PCR1224, PCR1226, PCR1228 & PCR1230)

Available with white wells and a black frame for optimum signal-to-noise ratio when using fluorescent based assays (PCR1244)

Available with black wells and a black frame for non-PCR fluorescent applications (PCR1246)

Extra rigid skirt option (PCR1234) for use with Perkin-Elmer® Sciclone, Beckman, Hamilton, and other automation systems: eliminates the robotic grip picking up more than one plate at a time

Ethylene oxide treated option available for forensic use (PCR1240)

Ultra-low DNA binding option available for sensitive applications with ultra-low DNA input and for maximum DNA recovery after low temperature storage and high temperature incubation (PCR1236)

Available as a combi packs with 50 x clear well/purple frame plates and 50 x optically clear windowed qPCR seal (PCR1238)
