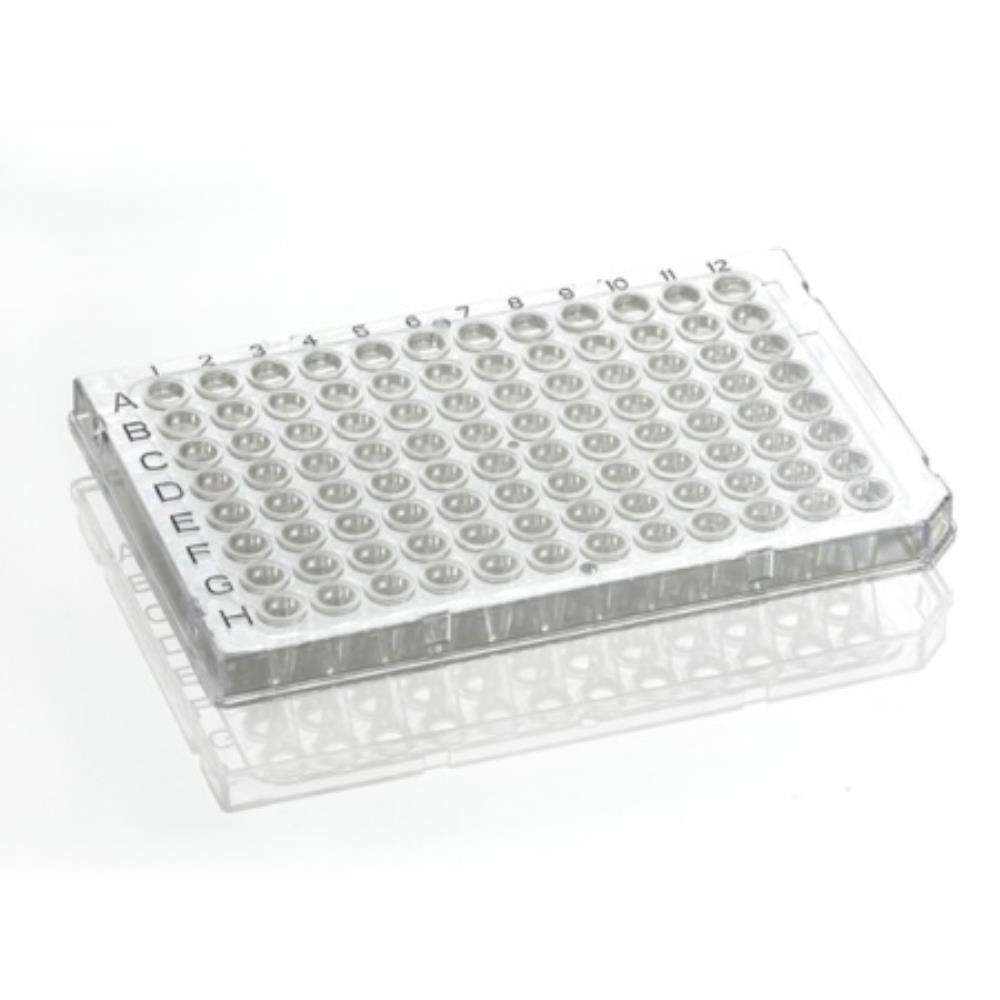

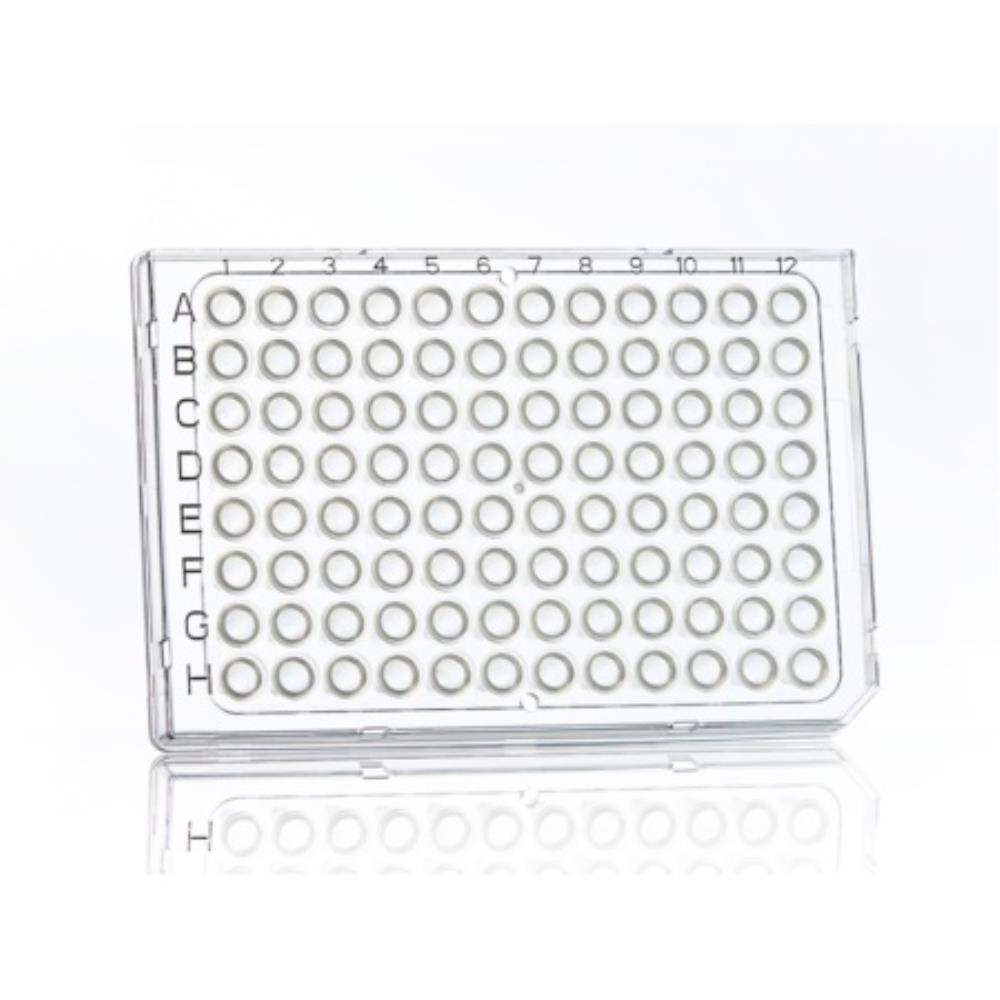

Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted Roche Style Low Profile Clear Frame Cl
Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted Roche Style Low Profile Clear Frame Cl

Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted Roche Style Low Profile Clear Frame Cl

Stock Code: 1021456
Manufacturer Part No: PCR1206
Contact us now for lead time
£279.50 (exc VAT) per PK50
Quantity: - +

FrameStar® Roche Style plates are designed to achieve optimised assay conditions on the Roche LightCycler® 96 and 480 (with 96 well block). This particular style of plate is in a low profile 96-well format; perfect for reaction volumes of 10 - 100µL. The wells are shorter than "standard" profile wells, which decrease the "dead space" between the heated lid of the thermal cycler and the sample in the well. This eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction. This is especially recommended for reaction volumes below 20µL. The semi-skirted frame allows for labelling or barcoding.


Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen


Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results


﹤0.1mL (100µL) working volume, 0.2mL (200µL) total well capacity


Rigid polycarbonate frame for added mechanical stability


Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results


Improved seal integrity due to thermal stability of frame


Alphanumeric grid reference to aid well and sample identification


Cut corner H12


Compatible with the Roche LightCycler® 96 and 480 (with 96 well block)


Recommended for low volume PCR


Ideal for use with robotic systems


Compatible with standard multichannel pipettes


Available with clear polypropylene wells on a clear polycarbonate frame (PCR1206 & PCR1214) or with white wells for optimum signal-to-noise ratio when using fluorescent based assays (PCR1208, PCR1212 & PCR1210)


PCR1212 is a combi pack of 50 x white well/clear frame plates and 50 x qPCR seals


PCR1214 is a combi pack of 50 x clear well/clear frame plates and 50 x qPCR seals


PCR1210 is a combi pack of 50 x white well/clear frame plates and 50 x optically clear windowed qPCR seals

Manufacturer4TITUDE
