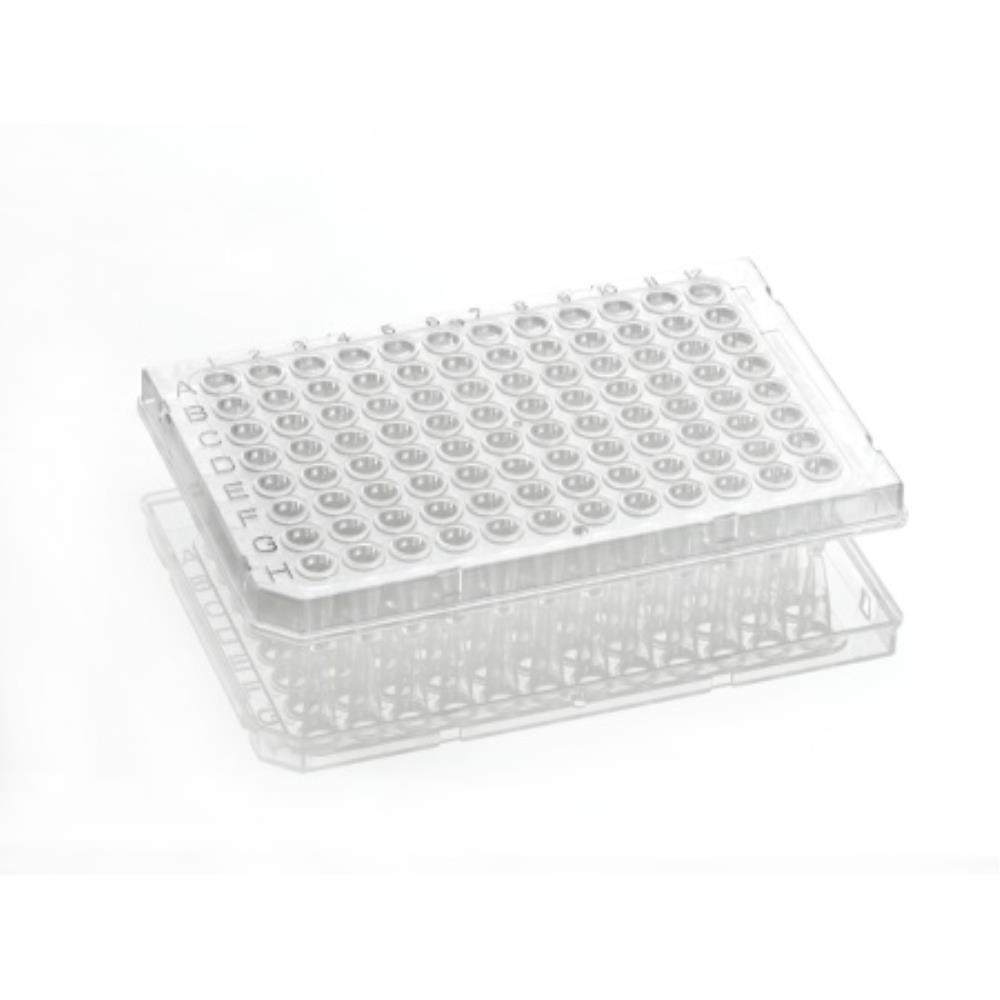

Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted Clear Frame Clear Wells H1 Cut Corner

Stock Code: 1021448
Manufacturer Part No: PCR1190

Order Now for 3 day delivery

Descriptions

The rigid FrameStar® 2-component design eliminates warping and distortion during PCR, making it ideal for use with robotic systems. The semi-skirted allows for labelling or barcoding for sample tracking. FrameStar® PCR plates maximise thermal stability at high temperatures, which prevents sample loss by minimising thermal expansion during PCR. The two-component design combines the advantages of thin wall polypropylene tubes for optimum PCR results, and a rigid polycarbonate skirt and deck for the highest thermal stability and rigidity. In contrast to standard one-piece PCR plates, evaporation from the corner positions of the plate and outer rows of wells is minimal, which allows for the downscaling of reagent volumes and therefore saves costs. This means that compared to a standard polypropylene plate, the FrameStar® plate will not warp and expand during rapid heating and cooling, meaning the integrity of seals will remain consistent and therefore less of your sample will evaporate. This in turn means you can spend less money on expensive reagents, as you are retaining more during the PCR process.

Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen

Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results

﹤0.2mL (200µL) working volume, 0.3mL (300µL) total well capacity

Cut corner at H1

Rigid polycarbonate frame for added mechanical stability

Universal semi-skirted plate designed for use on standard thermal cyclers

Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results

Improved seal integrity due to thermal stability of frame

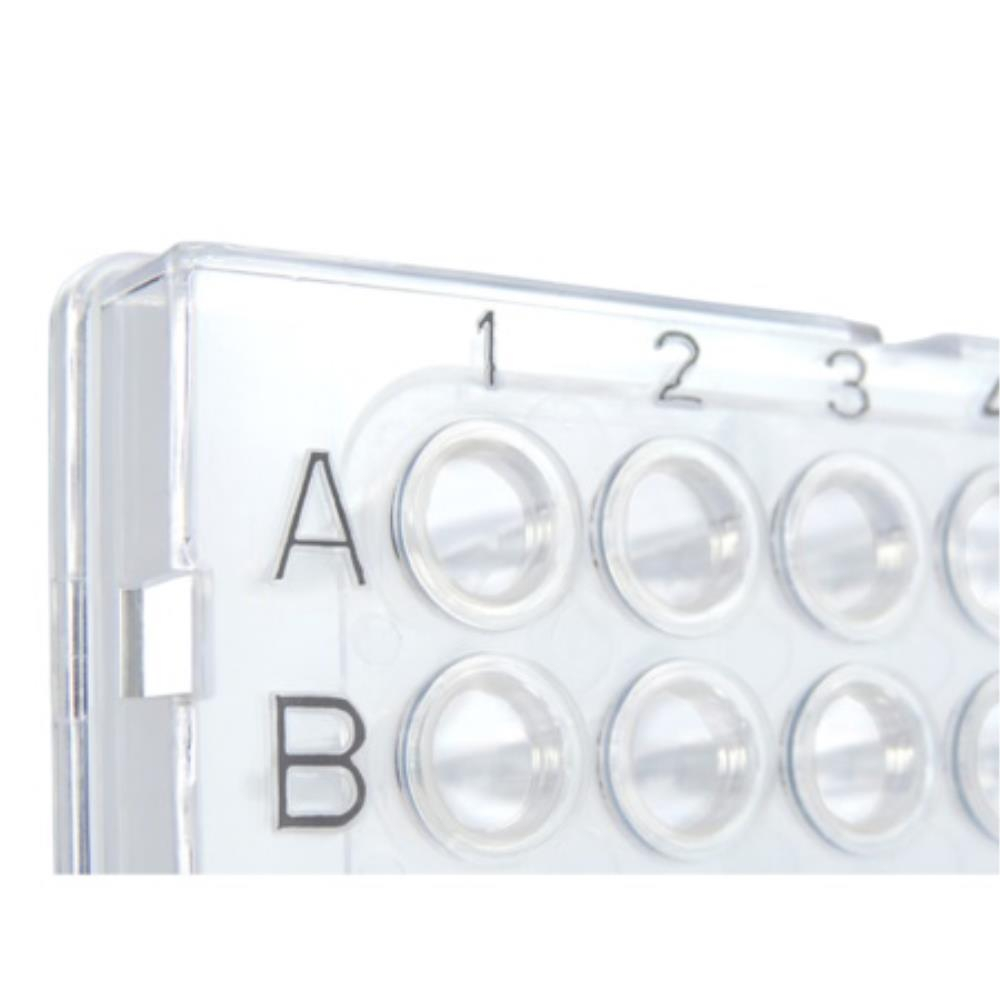

Alphanumeric grid reference to aid well and sample identification

Recommended for low volume PCR

Compatible with standard multichannel pipettes

Ideal for use with robotic systems
