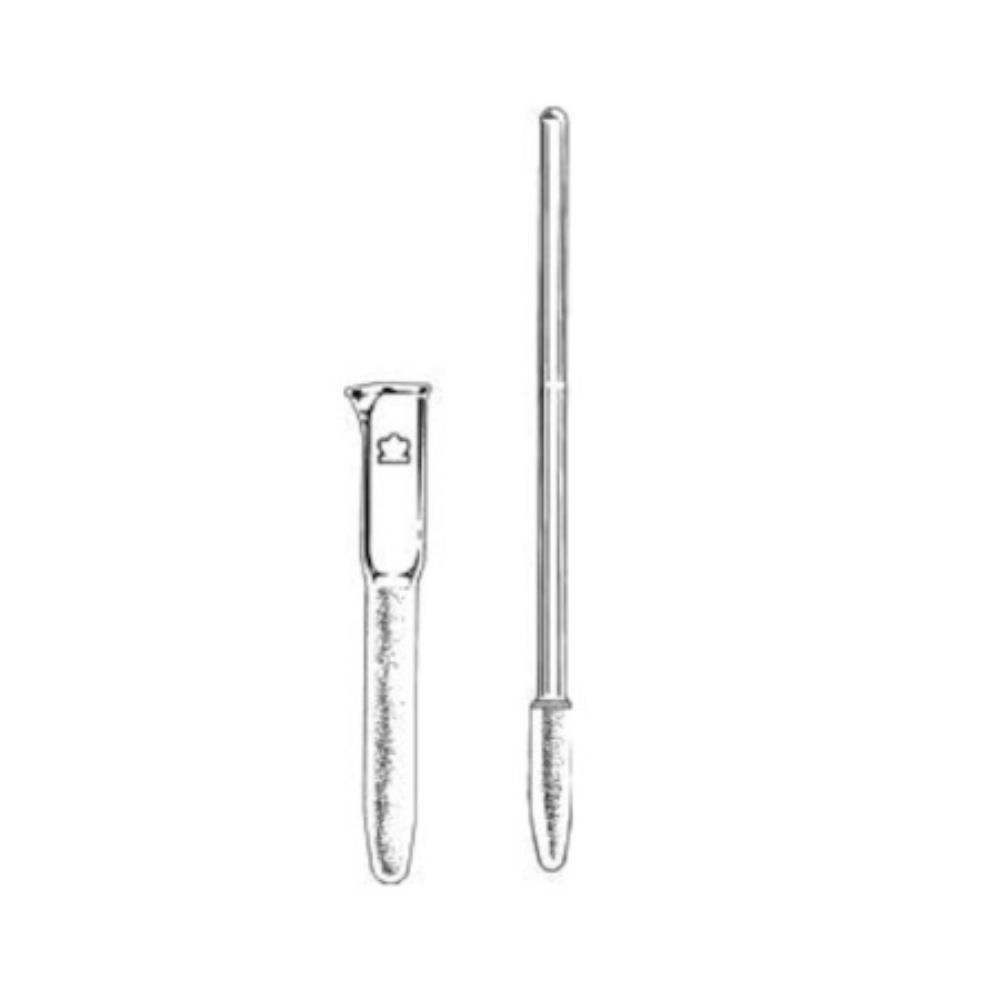

Duall Tissue Grinder, Size 21, Working Capacity 3mL, 207x6mm (Pestle Overall x Shaft OD), 120x16 (

Stock Code: 2531389
Manufacturer Part No: K8854500021

Descriptions

Tissue grinders produce homogenates by a combination of shearing and compression actions. The tissue sample is progressively ground (sheared) into smaller pieces at the rounded end of the pestle as the spinning pestle is lowered into the tube. As the pestle is forced lower into the tube, the sample is displaced and forced between the straight outside wall of the pestle and the inside wall of the tube, compressing the tissue cells until they rupture. When the tube is pulled away from the pestle, a slight vacuum is created that pulls the sample back past the compression area, resulting in an additional homogenisation stroke. The degree of homogenisation is controlled by the clearance between the pestle's and tube's cylindrical section (radial distance usually 0.002 - 0.003 inches), the rotational speed of the pestle, and the number of compression strokes made.

Manufactured from borosilicate glass 3.3
This ground glass model is ideal for connective tissue such as muscle, heart and lung
Construction is strong enough to allow the pestle to be motor-driven
Clearance between pestles and tubes is 0.004 " to 0.006 "
Tube length: 120mm
Nominal capacity: 3mL
Tube reservoir OD: 16mm
Size: 21
Pestle shaft OD: 6mm
Pestle length: 207mm
