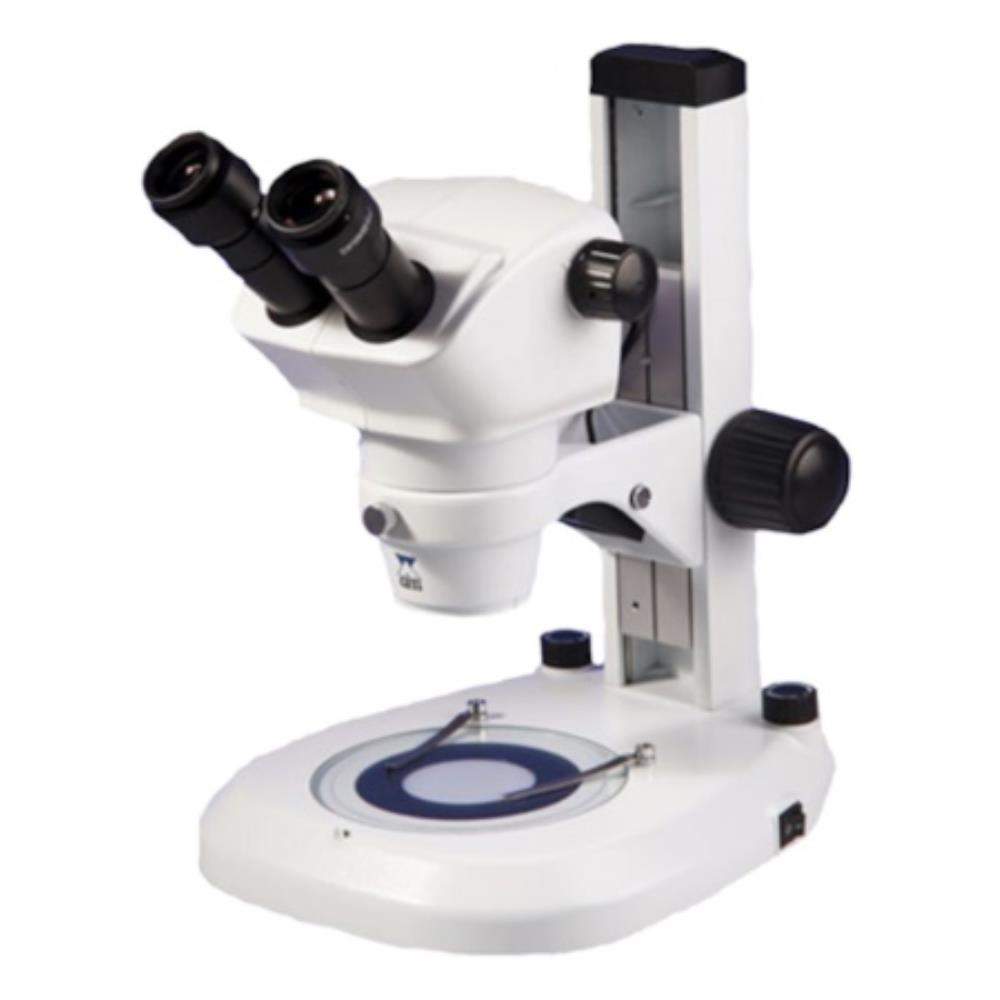

SLS Lab Basics Steddy-BR Trinocular Stereo Microscope with Broad Base with Zoom Ratio 0.67x - 4.5x

Stock Code: 3652510
Manufacturer Part No: SLS2108

Order Now for 28 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

The SLS Lab Basics Steddy trinocular stereo microscope provides high quality, wide field of view images, a wide zoom range and is highly robust and extremely well built, suitable for the most demanding uses. It features convenient 0.67x - 4.5x zoom ratio and a pair of 10x super widefield (FN 22) eyepieces, giving a total magnification range of 6.7x to 45x or, with auxiliary objectives and/or alternative eyepieces, 3.35x to 180x. The optical quality is extremely good giving a bright, crisp 3D image of the specimen. It features dual LED illumination. A photo port to allow the connection of a digital camera to capture images or videos is included as standard. An excellent, professional grade instrument choice.

Diamond shaped base is the best option for teaching laboratories (to allow for storage of large numbers of microscopes) or where space is limited, whereas the broad base is the best option for dissecting applications and applications where larger specimens are being observed

Optical head: trinocular, inclined at 45° with photo port, interpupillary distance adjustment (Sidentopf type): 55 - 75mm, diotropic adjustment on both eyepiece tubes

Eyepieces: 10x/22mm super widefield

Magnification: zoom ratio: 0.67 - 4.5x

Standard magnification range: 6.7 - 45x

Full magnification range (with optional lenses and eyepieces): 3.35 - 180x

Working distance: 165mm

Focusing mount: rectangular support with dual coarse focus knobs

Stage: diamond base with 5W LED transmitted illumination and 8W LED ring light (SLS1206) or broad base with 5W LED transmitted illumination and 2W LED reflected illumination, directional (SLS1208)

Focusing knobs: coaxial coarse with safety stop and tension adjustment

Supplied with: two rubber eyecups, dust cover, instruction manual, and blue filter
