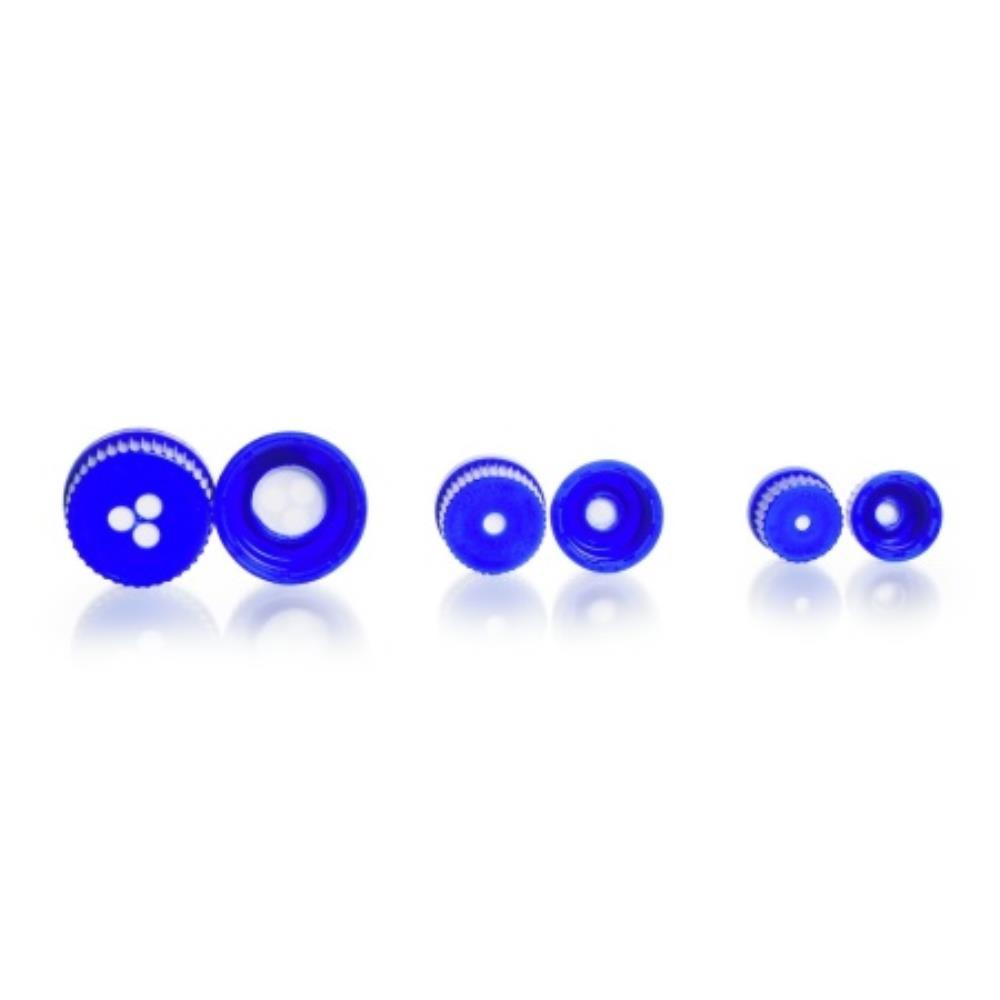

DURAN Membrane Screw Cap GL 32 PP Blue for Glass Bottles ePTFE Pore size 0.2um

Stock Code: 1771310
Manufacturer Part No: BOT2232

Descriptions

Supplied in packs of 5

DURAN® Original GL Screw Capped Laboratory bottles are ideal containers for sterilising and storing media or buffer solutions. However, it is strongly recommended that during the autoclaving cycle the caps are only loosely tightened. Heating times are reduced if the steam is easily able to penetrate the contents of the bottle. Loose caps also reduce the risk of failure due to pressure build up inside the bottle, which can reach 400kPa (absolute). In addition, tightening the screw caps immediately after autoclaving, will result in a vacuum caused by the cooling of the steam. This can lead to bottle failure, and is an especially important consideration for larger bottles. To overcome these limitations, the sterile venting membrane screw caps were developed. The screw cap can be tightly closed as the membrane permits an automatic sterile gas exchange, allowing safe pressure equalisation during the autoclave cycle, and at the same time ensuring the sterility of the bottle contents.

Blue PP welded-in expanded PTFE membrane for pressure equalisation during autoclaving

Microporous structure of the ePTFE membrane enables sterile gas exchange in two directions, while blocking the penetration of liquids or solids and the bottle contents remain sterile

Increased gas exchange rate due to thin 0.2µm ePTFE membrane, combined with larger ventilation openings

PTFE membrane and its polypropylene mesh support are ultrasonically welded in place forming a durable seal

Cost effective as the caps can be reused several times (replacement recommended after 3 to 5 autoclave cycles due to durability, or if the membrane becomes damaged or contaminated)

Polytetrafluoroethylene (ePTFE) membrane (conforms to USP 121°C Class VI) with polypropylene mesh
