DURAN Connection Cap System GL 45 with cyan PP screw cap with 4-port (stainless steel)

Stock Code: 1771297
Manufacturer Part No: BOT1280

Descriptions

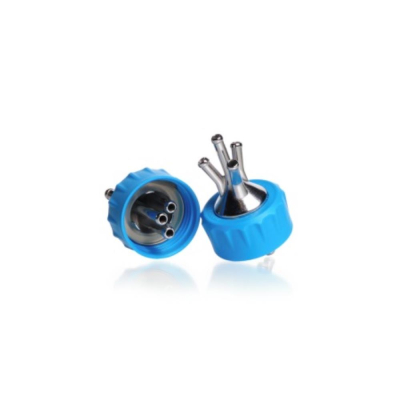

The DURAN® 4-port connector cap is manufactured using an innovative additive manufacturing method called three-dimensional metal printing. This method allows the complex form to be optimised using computer-aided design software, as well as significantly reducing the amount of metal required for construction. The transfer connection cap can be used with all sizes of DURAN® GL 45 bottles, and facilitates the movement of liquids within a closed and aseptic system. The four male hose connectors are suitable for flexible tubing with a 6.4 mm (1/4") inner diameter. This corresponds to the SDD initiative Size A tubing type, allowing easy connection to buffer bags, mixing systems, etc. Freely rotating stainless steel centre allows the bottle to be unscrewed without the need to disconnect the tubing. Connectors and body are manufactured from Type 316L (1.4404 / S31603) stainless steel. A silicone gasket and the GL 45 screw cap provide a liquid tight seal.

Wide temperature usage range (up to 180°C)

Autoclavable (121°C for 15 minutes)

Lot coded for full traceability and certification

Ideal for chemistry, life science and biopharma laboratories

Freely rotating stainless steel centre allows the bottle to be unscrewed without the need to disconnect the tubing

Easier attachment of the tubing due to slightly splayed top connectors

The four male hose connectors are suitable for flexible tubing with a 6.4 mm inner diameter (SDD initiative Size A tubing type)

Facilitated transfer of liquids within a closed and sterile system due to the bottle top adaptor

Shape optimised to avoid entrapment voids

Hygienic, electropolished surface for efficient cleaning and sterilisation
