Edwards Clean and Overhaul Kit RV3 12

Edwards Clean and Overhaul Kit RV3 12

Stock Code: 1821862
Manufacturer Part No: PUM5016
Order Now for 3 day delivery
£208.35 (exc VAT) per EACH
Quantity: - +

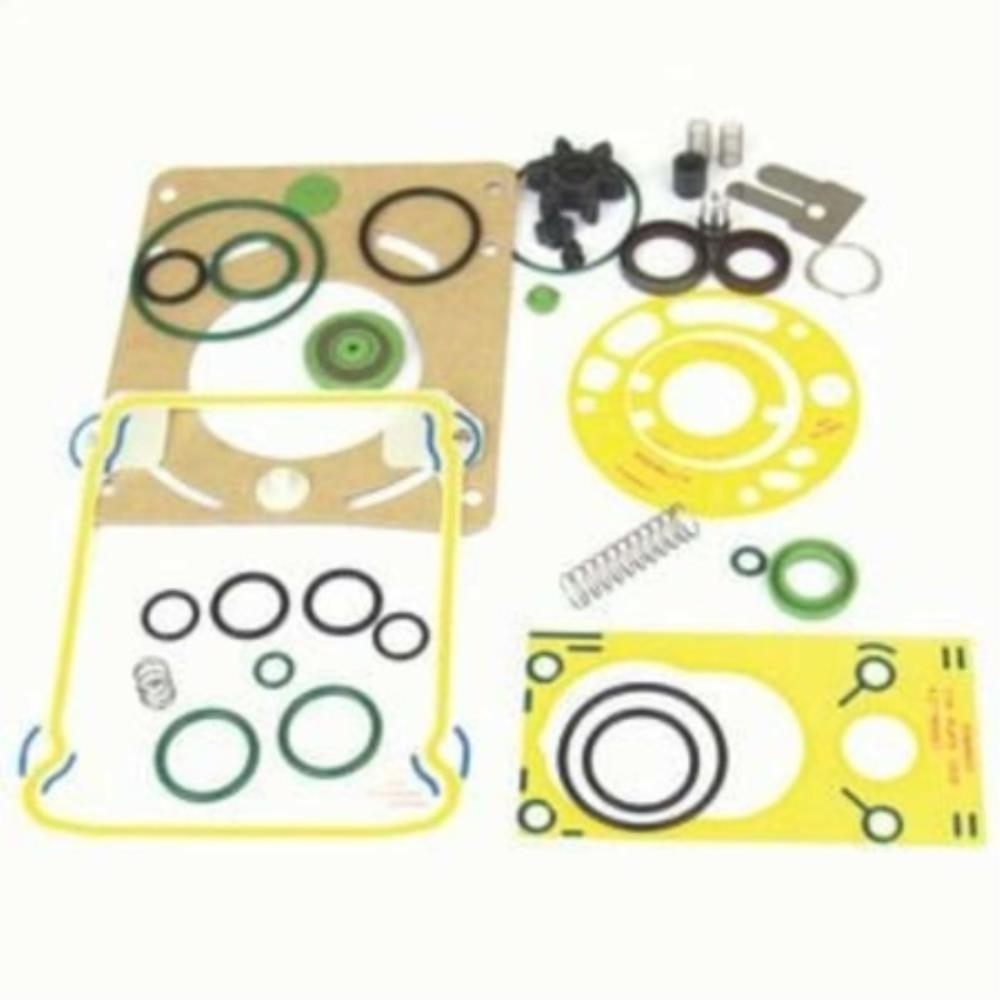

Contents

  • 1 x Oldham Coupling RV3/5/8/12
  • 1 x Exhaust Diaphragm FKM GP RVP
  • 1 x Coupling Element RV Pump
  • 1 x U Seal FKM GP RVP
  • 1 x Shoulder Washer (Ballast) RV
  • 1 x Spring (Ballast Control) St/St
  • 1 x Outer Shaft Seal Spacer RV
  • 3 x O Ring Nit 21.5 ID X 3.0 Sec
  • 1 x O-Ring Nit 49.5IDx3.0Sec
  • 1 x O Ring Nit 32.5 ID X 3.0 Sec
  • 1 x O-Ring FKM GP 7.6ID X 2.4Sec
  • 1 x Spring (Inlet Valve) St/St RVP
  • 1 x O-Ring FKM GP 57.6ID X 2.4Sec
  • 1 x O-Ring Nit 42.5Id X 3.0Sec
  • 1 x Top Plate Gasket
  • 1 x Shaft Seal Babsl 20 X 30 X 7 RV
  • 1 x Oil Pressure Valve RV
  • 1 x Valve Pad E2M1.5 E2M18 Pump
  • 2 x Spring (Dump Valve) RV
  • 1 x Oil Box Printed Gasket RV
  • 1 x Printed Gasket Cartridge RV
  • 3 x O-Ring FKM GP 1.109ID X.139Sec
  • 1 x O-Ring FKM GP 9.6ID X 2.4Sec
  • 1 x Seal Carrier Gasket
  • 1 x Air Bleed Assy RV
  • 1 x RV Reed Valve
  • 1 x Lip Seal FKM GP 25 35 7
  • 1 x RV Dump Valve
  • 1 x O-Ring FKM GP 69.5ID X 3.0Sec
  • 1 x Inlet Valve Pad Order KIT
  • 1 x Multi-Lingual Instr. Man. CD

PackEach
