Cole-Parmer SD Overhead Stirrer Mixer Set

Stock Code: 1597165
Manufacturer Part No: STI4530

Order Now for 28 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

Cole-Parmer SD laboratory mixers ensure accurate, dependable motor speed control with "soft-start" feature and smooth, gradual adjustment to the speed setting. Constant speed is maintained electronically via automatic compensation for changes in load torque demands at both high and low speeds. Built-in motor current compensation minimises speed drift with changes in load. Motor current limiting protects the system in case of a locked rotor condition. Output circuit protection protects against inadvertent output shorting.

Mixer rotates at 50 to 2500 rpm with a maximum torque of 113 in-oz (80 Ncm) and has a through-shaft capability

Bracket hardware is preinstalled to enable installation of the adjustable tilt mounting bracket

Motor cable connector has a locking mechanism when the cable is connected to prevent unintended disconnection in the event of accidental force on the motor cable

Precision digital controller is used to turn on and set the speed, timer, direction of rotation, and torque limits for the mixer motor

LED indicators identify the function being displayed, and a flashing LED and audible alarm indicate when limit conditions have been reached

Four-digit LED display indicates rpm, torque, time, and rotation direction

Durable - no wear user serviceable parts

Low/no maintenance brushless motor

Adjustable tilt from 0 to 30 degrees allows proper propeller placement

IP44 rated per IEC 60529

User-replaceable keyless chuck

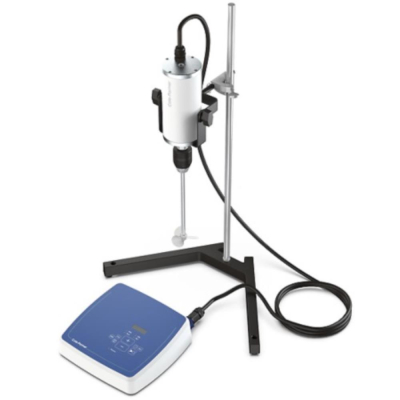

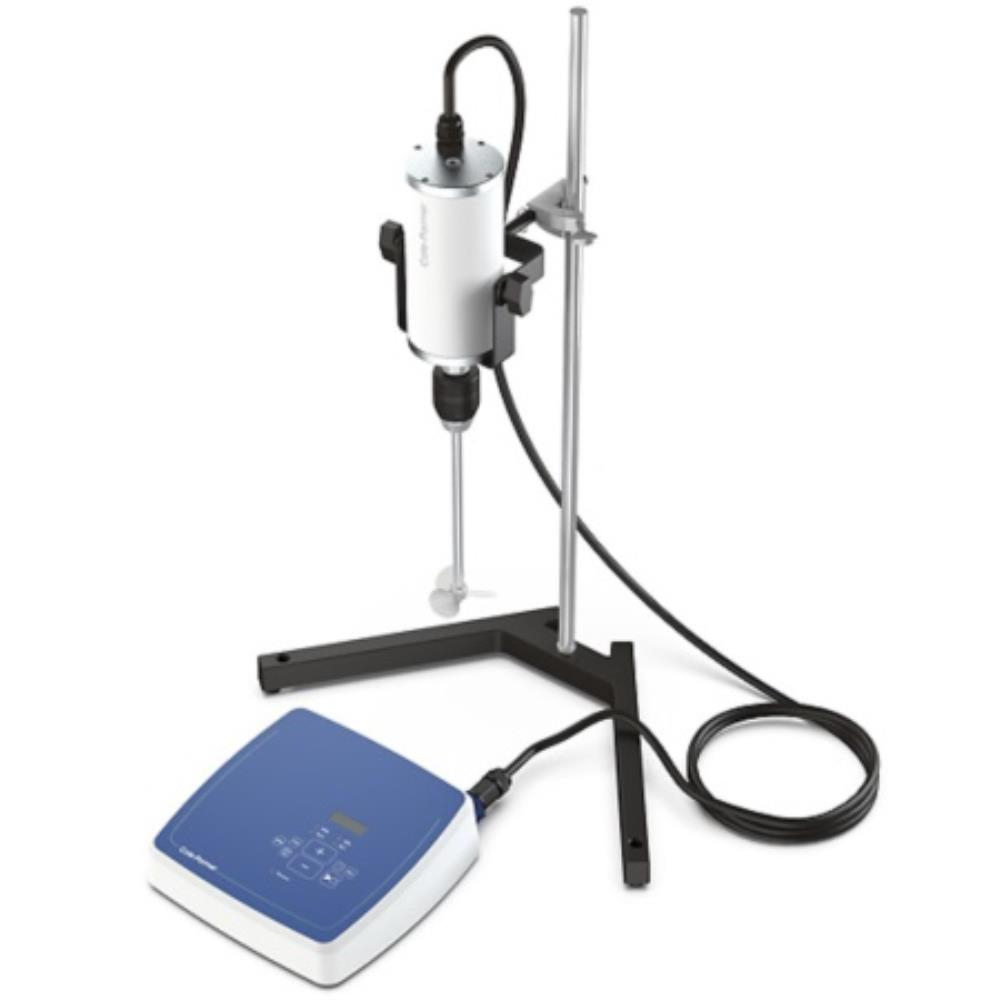

STI4530 mixer set includes mixer motor, bracket, digital mixer controller and power cord

STI4532 mixer system includes mixer motor, bracket, digital mixer controller, mixer stand, double rod clamp, 18 x 3/8" shaft, 3" propeller and power cord
