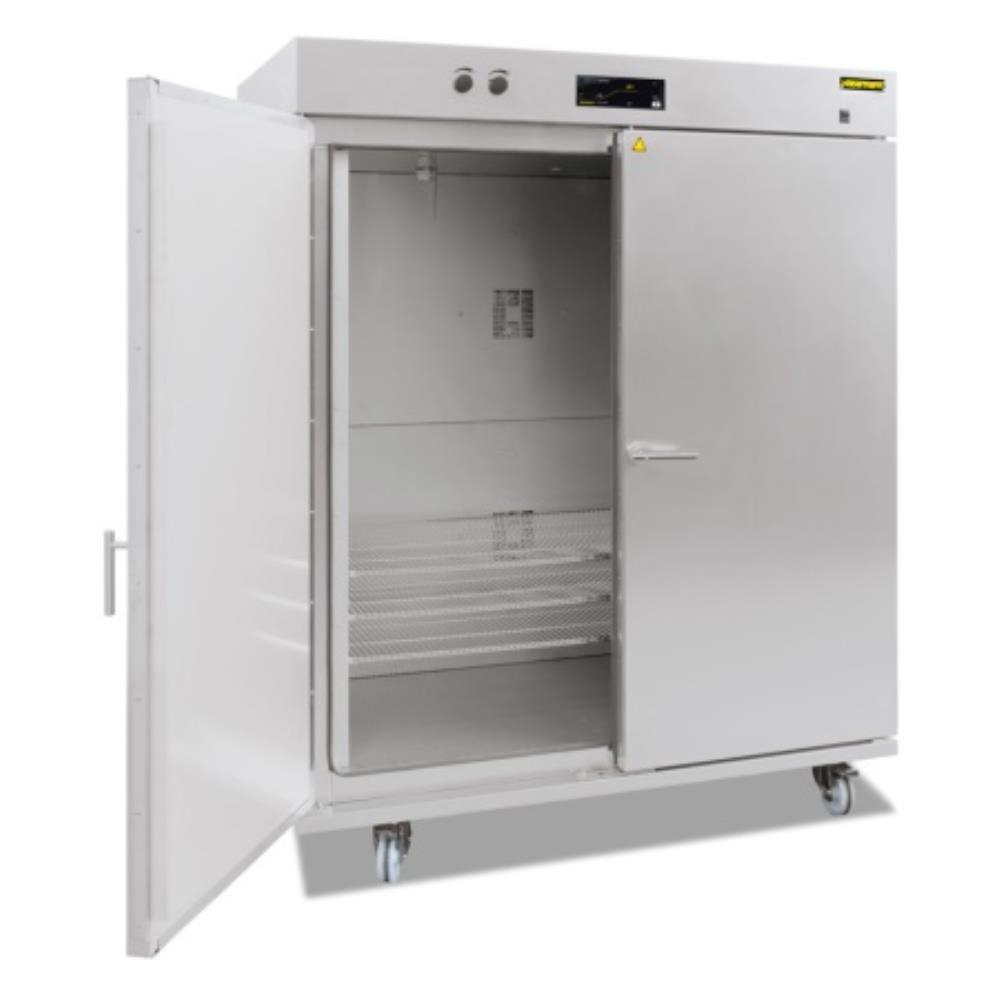

Nabertherm TR1050 Double Door Floor Standing Oven with Transport Castor and R7 Controller 1050L

Stock Code: 2921862
Manufacturer Part No: FUR1504

Order Now for 21 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

With their maximum working temperature of up to 300 C and forced air circulation, the TR range of ovens achieve a very good temperature uniformity. They can be used for various applications such as drying, sterilizing or warm storing.

Features of the range:

Short delivery times are insured for standard models.
Working temperature range: + 20 C above room temperature up to 300 C
Ovens TR 30 - TR 420 designed as tabletop models
Ovens TR 450 - TR 1050 designed as floor standing models
Horizontal forced air circulation results in temperature uniformity according to DIN 17052-1 better than +/? 5 C in the empty oven (with closed exhaust air flap)
Stainless steel furnace housing, material no. 1.4016 (DIN)
Stainless steel chamber, alloy 304 (AISI)/(DIN material no. 1.4301), rust resistant and easy to clean
Large, wide-opening swing door, hinged on the right with quick release for models TR 30 - TR 240 and TR 450
Double swing door with quick release for models TR 420, TR 800 and TR 1050
Ovens TR 800 and TR 1050 equipped with transport castors
Adjustable exhaust at the rear wall with operation from the front
PID microprocessor control with self-diagnosis system
Safety technology according to EN 1539 for charges containing liquid solvents, achievable temperature uniformity +/? 8 C according to DIN 17052-1 in the empty oven (with closed exhaust air flap

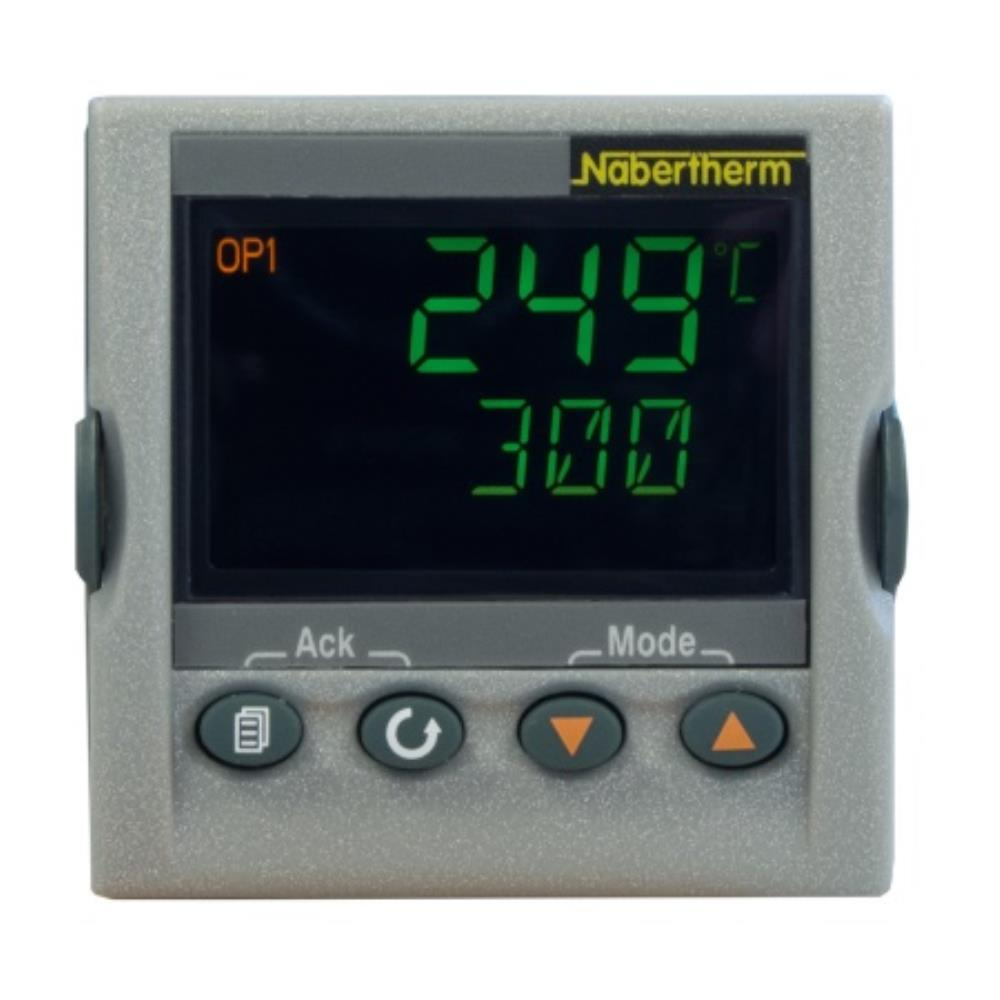

Comes standard with R7 controller

Customisable - these features can be added on request

Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the oven and load
Range of controller options available
Fan speed of the air circulation fan can be reduced to meet your requirements
Window for charge observing
Further removeable grids with rails
Side inlet
Electrical rotary device (associated sample holder will be individually adapted to the charge)
Exhaust air duct
Transport castors for models TR 240 - TR 450
Upgrading available to meet the quality requirements of AMS2750F or FDA

*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure and reach out for a quote. This furnace features no safety technology for processes which produce combustible mixtures, for example debinding. If the furnace is still used for such processes despite this fact, the concentration of organic gas mixtures in the furnace must never exceed 3% of the lower explosion limit (LEL). This pre-requisite applies not only to normal operation but, in particular, to exceptional situations such as process disruptions (caused, for example, by the failure of a power unit). You must ensure that the furnace is adequately ventilated and vented. *
