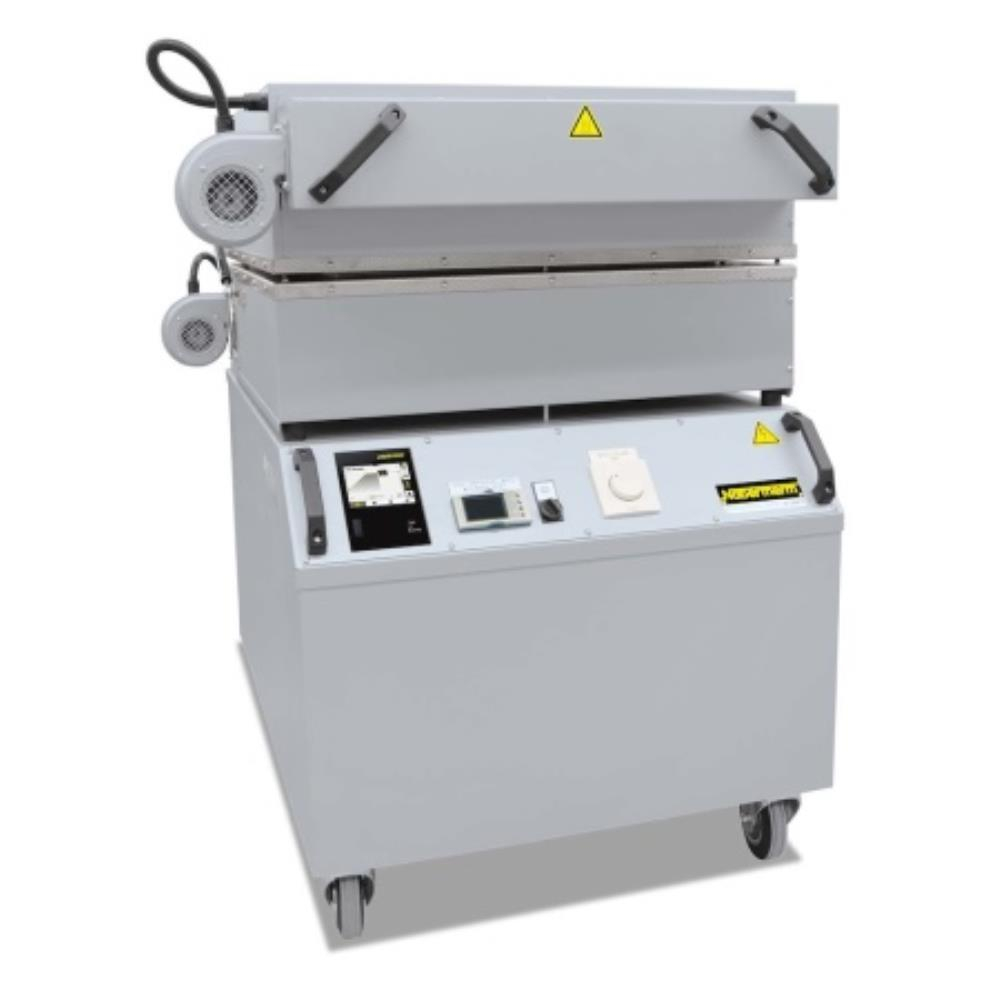

These fast-firing furnaces are ideal for simulation of typical fast-firing processes up to a maximum firing temperature of 1300 C. The combination of high performance, low thermal mass and powerful cooling fans provides for cycle times from cold to cold up to 35 minutes with an opening temperature of approx. 300 C.
Standard Equipment:
Tmax 1300 C
Ceramic grid tubes as charge support
Floor and lid heating, two-zone control
Special arrangement of the heating elements for optimum temperature uniformity
Rapid switching cycles result in precise temperature control
Integrated cooling fans, programmable to speed up charge cooling including housing cooling
Programmable lid opening of approximately 60 mm for faster cooling without activating the fan
Thermocouple type S for top and bottom zone
Castors for easy furnace moving
Controller P570 (50 programs with each 40 segments), alternative controllers available
*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure and reach out for a quote. This furnace features no safety technology for processes which produce combustible mixtures, for example debinding. If the furnace is still used for such processes despite this fact, the concentration of organic gas mixtures in the furnace must never exceed 3% of the lower explosion limit (LEL). This pre-requisite applies not only to normal operation but, in particular, to exceptional situations such as process disruptions (caused, for example, by the failure of a power unit). You must ensure that the furnace is adequately ventilated and vented. *
