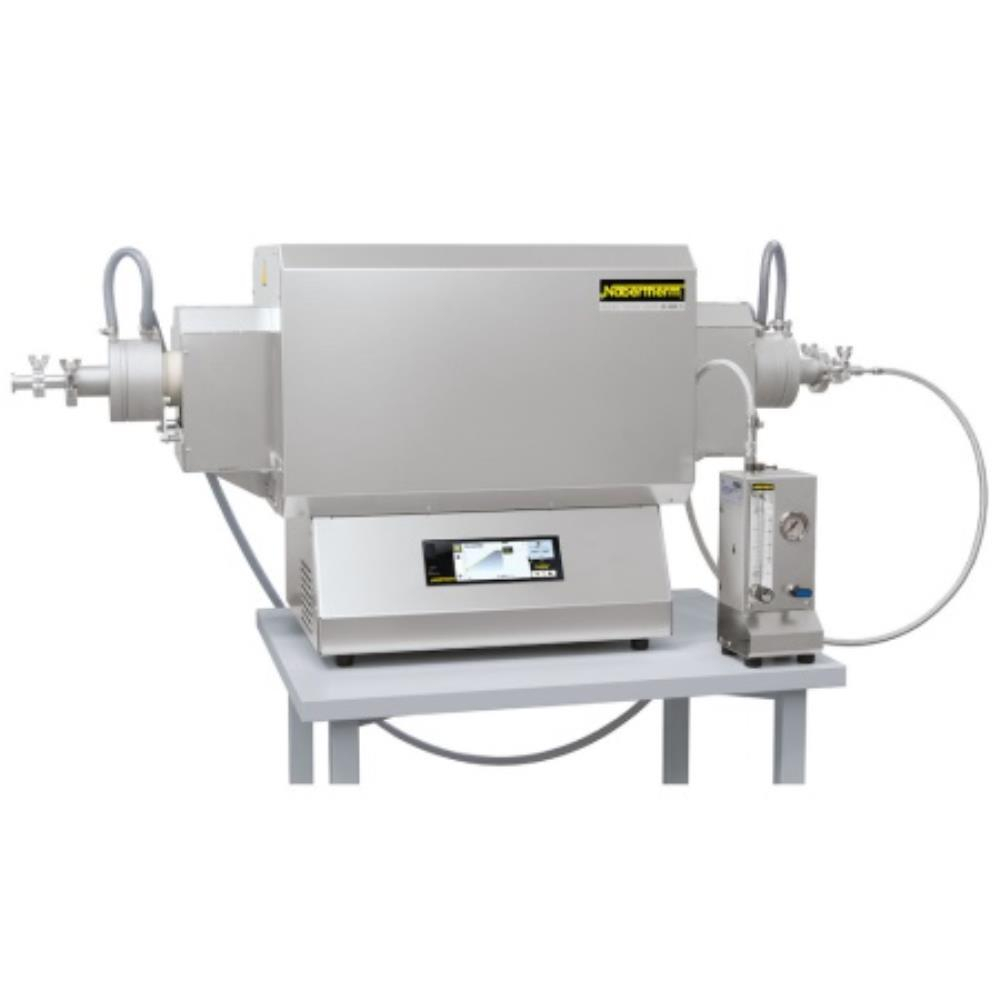

Nabertherm RHTC80 High temperature tube furnace with SiC Rod heating and gas panel (Tmax 1500 C) and

Stock Code: 2921855
Manufacturer Part No: FUR1620

Order Now for 21 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

These compact tube furnaces with SiC rod heating and integrated switchgear with controller can be used universally for many processes. They represent an inexpensive variant in the high-temperature range. The standard mounting options for accessories make them flexible in use for a wide range of applications. The SiC heating elements arranged parallel to the working tube provide for an excellent temperature uniformity.

Standard Equipment:

Tmax 1500 C
Active cooling of housing for low surface temperatures
Ceramic working tube C 799 including two fiber plugs for operation under air
Type S thermocouple
SiC heating elemens, easy to replace
Controller B510 (5 programs with each 4 segments), alternative controllers available

Addtional Equipment:

Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the oven and load
Charge control with temperature measurement in the working tube
Alternative working tubes
Gas supply systems 1, 2, 3 or 4

*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure and reach out for a quote. This furnace features no safety technology for processes which produce combustible mixtures, for example debinding. If the furnace is still used for such processes despite this fact, the concentration of organic gas mixtures in the furnace must never exceed 3% of the lower explosion limit (LEL). This pre-requisite applies not only to normal operation but, in particular, to exceptional situations such as process disruptions (caused, for example, by the failure of a power unit). You must ensure that the furnace is adequately ventilated and vented. *
