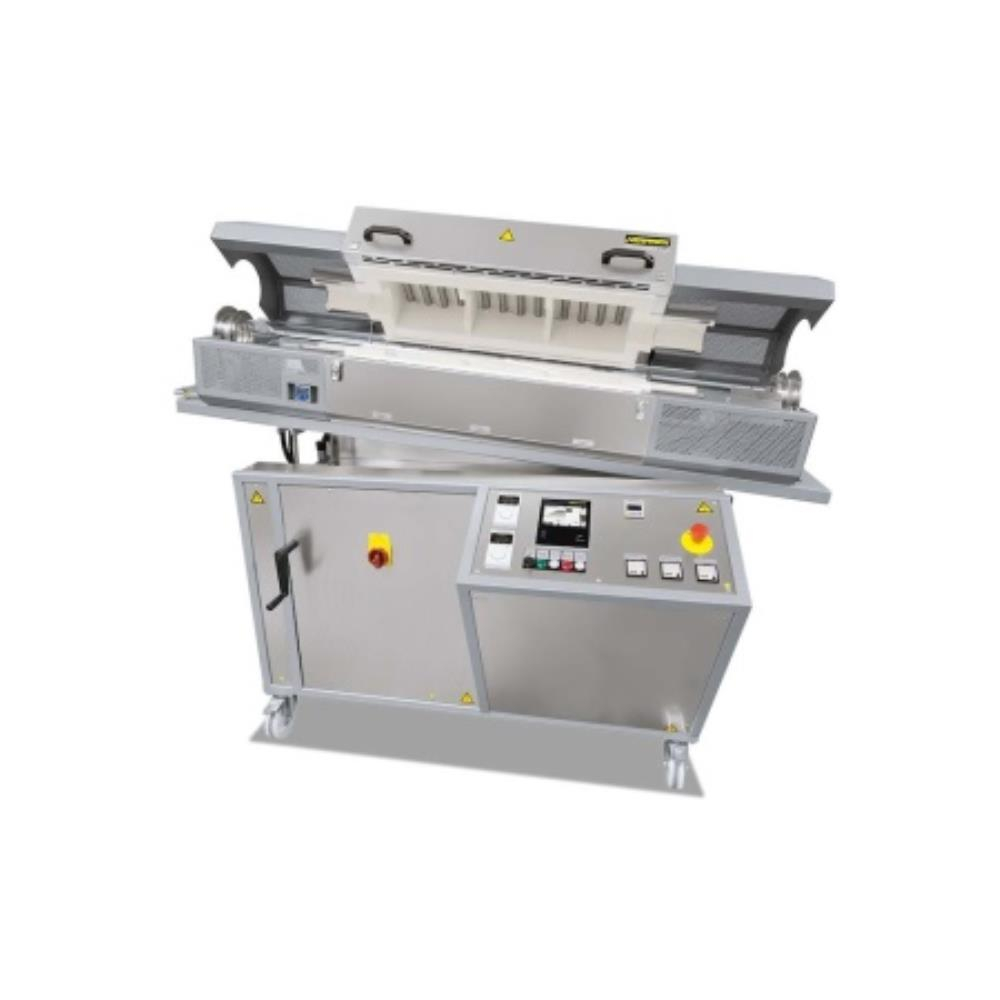

Nabertherm RSRC120 Rotary tube furnace with continous movement (Tmax 1300 C) and B500 controller

Stock Code: 2921851
Manufacturer Part No: FUR1612

Order Now for 21 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

The rotary tube furnaces of the RSRC series are particularly suitable for processes in which continuously running batch material is heated for a short-time. These rotary furnaces can be used very flexibly for various purposes. The rotary tube furnace is slightly inclined and brought to the target temperature. The material is then fed continuously at the top of the pipe. It passes through the heated zone of the tube and falls out of the pipe at the lower end. The time of the heat treatment depends on the angle of inclination, the speed of rotation and the length of the working tube, as well as from the flow properties of the batch material. Equipped with the optionally available closed feeding system, the rotary tube furnace can also be used for processes in a defined atmosphere or in a vacuum. Depending on the process, batch and required maximum temperature, work tubes made of different materials are used.

Standard Equipment:

Two options

Working tube made of quartz glass open at both sides (Tmax 1100 °C) Thermocouple type N

Open ceramic tube C 530 (Tmax 1300 °C) Thermocouple type S

Heating elements on support tubes provide for free radiation

Adjustable drive of approx. 0.5-20 rpm

Digital display unit for the tilting angle of the rotary tube furnace

Split-type furnace housing (opening temperature 180 °C) provide for easy tube change

Compact system, rotary tube furnace positioned on a base frame with

Manual spindle drive with crank to set the tilting angle

Switchgear and controls integrated

Castors

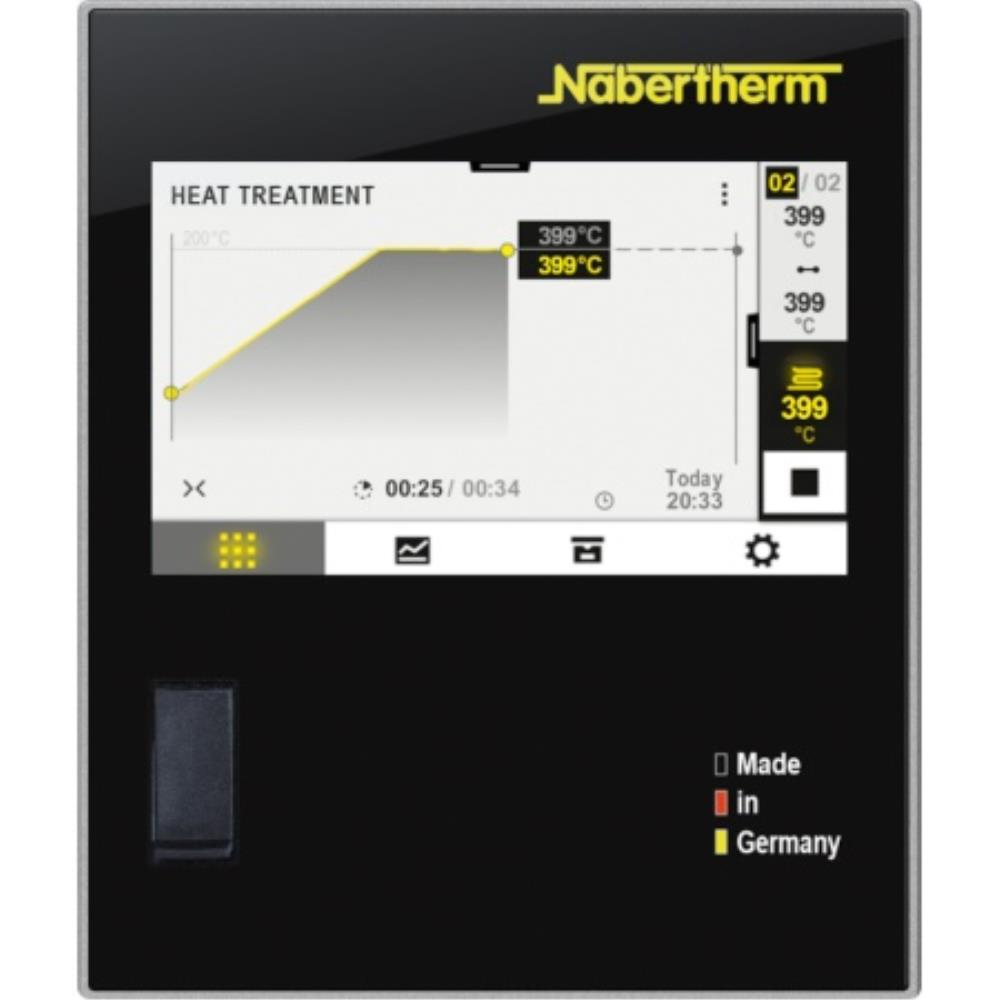

Controller B500 (5 prgrams with each 4 segments), other options available

Additional Equipment:

Charge control with temperature measurement in the working tube

Three-zone control for optimization of temperature uniformity

Alternative work tubes for different process requirements

Quartz glass batch reactors (Tmax 1100 °C)

Higher temperatures up to 1500 °C available on request

Vibrating channel on the rotary tube for convenient material supply, suitable for processes in air

Powder discharge tube for easy material discharge, suitable for processes in air

Feeding system for the continuous delivery of 5 liters of material under a defined atmosphere or vacuum, consisting of:

Stainless steel funnel incl. electric vibration unit to optimize the material feeding into the working tube

Electrically driven screw-conveyor at the inlet of the working tube with 10, 20 or 40 mm pitch and adjustable speed between 0.25 and 20 rpm

Collecting bottle made of laboratory glass at the outlet of the working tube

Gas supply package 26 for operation under non-flammable protective or reaction gases (only in connection with the feeding system)

Gas supply packages 3 or 4 for hydrogen applications (only in connection with feeding system)

Vacuum package for evacuating the working pipe, depending on the pump used up to 10?2 mbar

*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure and reach out for a quote. This furnace features no safety technology for processes which produce combustible mixtures, for example debinding
