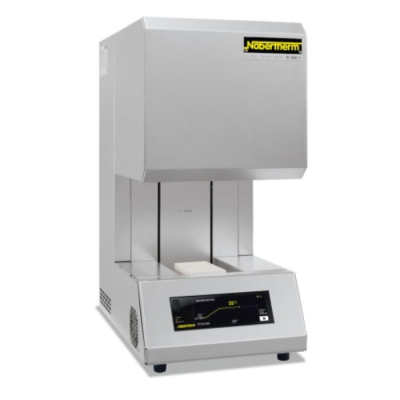

Nabertherm 1L High-Temperature bottom loading furnace with stackable saggars (Tmax 1700C) and P580 c

Stock Code: 2921837
Manufacturer Part No: FUR1576

Order Now for 21 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

The motor-driven lifting table significantly simplifies the charging of the high-temperature furnaces LHT ../.. LB (Speed). The heating all around the cylindrical furnace chamber provides for an opitimal temperature uniformity. For the tabletop models LHT 01/17 LB Speed and LHT 02/17 LB Speed the charge can be placed in charge saggars made of technical ceramics. Up to three charge saggars can be stacked on top of each other resulting in a high productivity.

Standard Equipment:

Tmax 1650 C, 1700 C
High-quality heating elements made of molybdenum disilicide offer very good protection against chemical interaction between charge and heating elements
Excellent temperature uniformity thanks to three (LHT 02/17 LB Speed) or foursided (LHT 01/17 LB Speed) heating of the furnace chamber
Furnace chamber with a volume of 1, 2 or 16 liters, table with large floor space
Precise, motorized toothed belt drive of the table with button operation
Exhaust air vent in the roof
Type S thermocouple
P580 Controller (50 programs with 40 segments)
Stackable Saggars

Additional Equipment:

Over-temperature limiter with adjustable cutout temperature as temperature
limiter to protect the oven and load
Adjustable air inlet through the floor

*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure and reach out for a quote. This furnace features no safety technology for processes which produce combustible mixtures, for example debinding. If the furnace is still used for such processes despite this fact, the concentration of organic gas mixtures in the furnace must never exceed 3% of the lower explosion limit (LEL). This pre-requisite applies not only to normal operation but, in particular, to exceptional situations such as process disruptions (caused, for example, by the failure of a power unit). You must ensure that the furnace is adequately ventilated and vented. *
