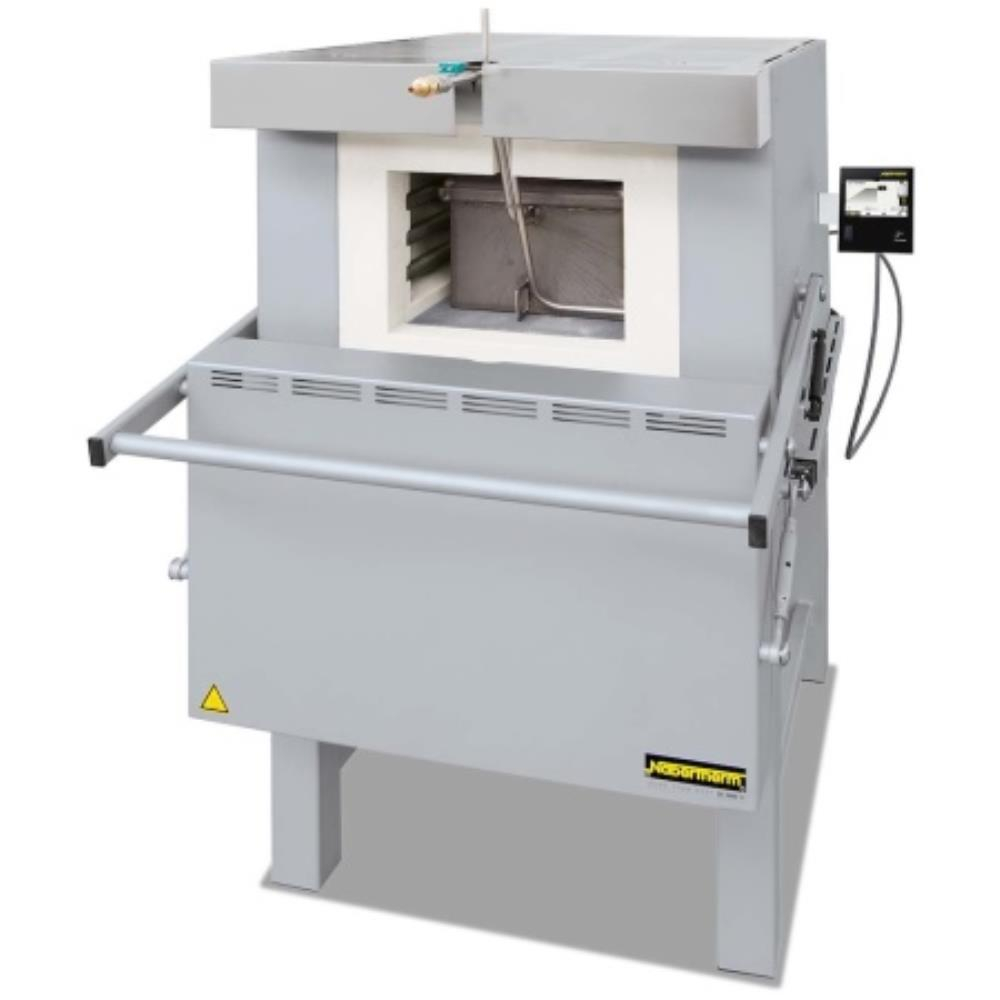

Nabertherm 61L Robust chamber furnace suitable for harsh applications (Tmax 1280 C) and B500 control

Stock Code: 2921832
Manufacturer Part No: FUR1566

Order Now for 21 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

To withstand harsh use in the laboratory, e.g. when heat-treating metals, robust insulation with light refractory bricks is necessary. The chamber furnaces N 7/H - N 87/H are a perfect fit to solve this problem. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium in medical applications can be implemented without the use of expensive and complicated annealing systems.

Standard Configuration:

Tmax 1280 °C

Range from 7L to 87L capacity

Deep furnace chamber with three-sides heating: from both side walls and bottom

Heating elements on support tubes ensure free heat radiation and a long service life

Bottom heating protected by heat-resistant SiC plate

Temperature uniformity up to +/? 10 °C according to DIN 17052-1

Low energy consumption due to multi-layer insulation

Base frame included in the delivery, N 7/H - N 17/HR designed as table-top model

Parallel guided downward swinging door (user protected from heat radiation)

Door movement cushioned with gas dampers/struts

Controller B500 (5 prgrams with each 4 segments), alternative controllers available

*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure and reach out for a quote. This furnace features no safety technology for processes which produce combustible mixtures, for example debinding. If the furnace is still used for such processes despite this fact, the concentration of organic gas mixtures in the furnace must never exceed 3% of the lower explosion limit (LEL). This pre-requisite applies not only to normal operation but, in particular, to exceptional situations such as process disruptions (caused, for example, by the failure of a power unit). You must ensure that the furnace is adequately ventilated and vented. *
