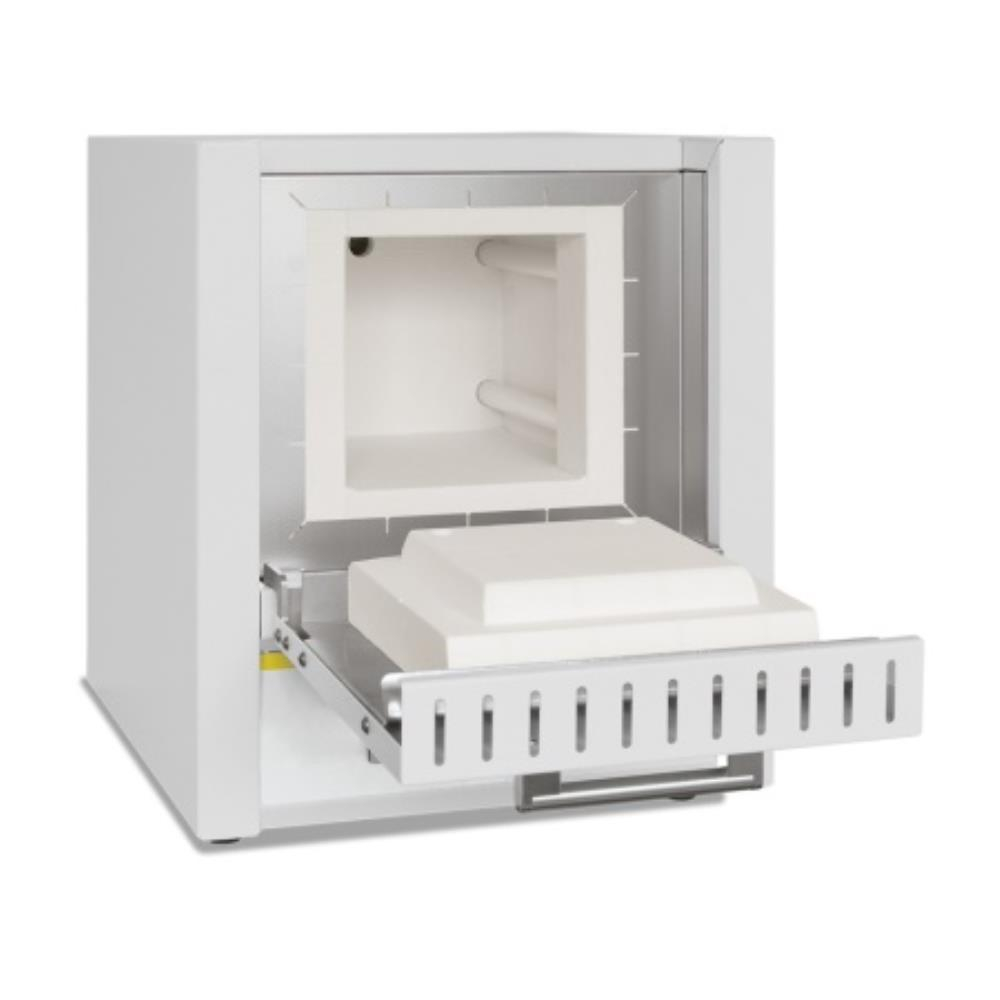

Nabertherm 6L Economy muffle furnace (Tmax 1100C) and R7 controller

Stock Code: 2921817
Manufacturer Part No: FUR1530

Order Now for 21 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

High price/performance ratio Muffle furnace with fast heat-up rates suitable for many applications in the laboratory. High standard of construction using quality materials like the dual shell furnace housing of rust-free stainless steel, or the heating elements encased in quartz glass tubes make these models reliable partners for your application.

Standard Equipment:

Tmax 1100 °C

Heating from two sides from heating elements protected in quartz glass tubes

Fast heating times

Maintenance-friendly replacement of heating elements and insulation

Housing coated in RAL

Flap door which can also be used as a work platform

Exhaust air outlet in rear wall

Compact dimensions and light weight

Controller mounted under the door to save space

Controller R7

Addition features available on request:

Chimney, chimney with fan or catalytic converter (not for LE 1 and LE 2)

*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure and reach out for a quote. This furnace features no safety technology for processes which produce combustible mixtures, for example debinding. If the furnace is still used for such processes despite this fact, the concentration of organic gas mixtures in the furnace must never exceed 3% of the lower explosion limit (LEL). This pre-requisite applies not only to normal operation but, in particular, to exceptional situations such as process disruptions (caused, for example, by the failure of a power unit). You must ensure that the furnace is adequately ventilated and vented. *
