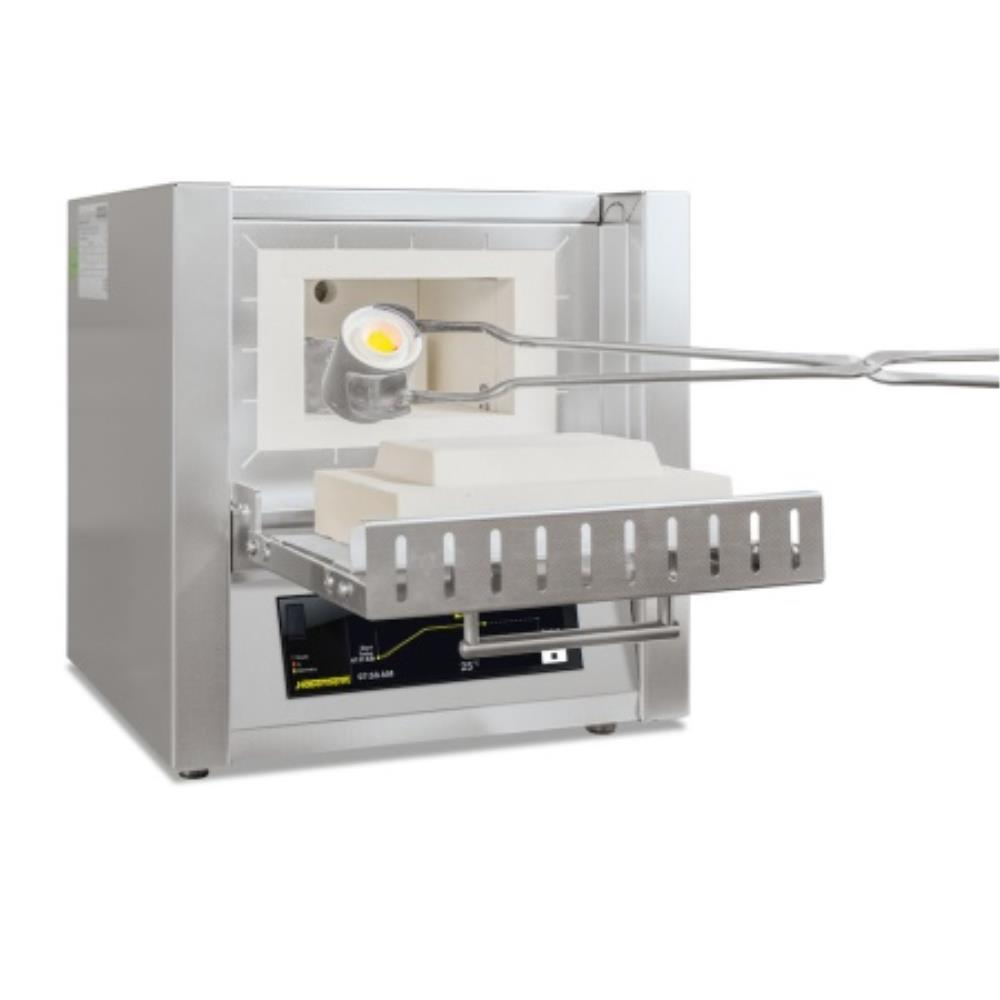

Nabertherm 3L muffle furnace with flap door (Tmax 1100C) and B510 Controller

Stock Code: 2921812
Manufacturer Part No: FUR1520

Order Now for 21 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

The Nabertherm L range of muffle furnaces have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.

Standard Equipment:

Thermocouple type N (1100 °C) or type S (1200 °C)

Size ranges from 1L to 40L

Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 40/12) for an optimal temperature uniformity

Ceramic heating plates with integral heating element which is safeguarded and easy to replace

Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator

Adjustable air inlet integrated in door (see illustration)

Exhaust air outlet in rear wall of furnace

Controller B510 w(5 programs each with 4 segments), alternative controllers available

Additional Equipment:

Chimney, chimney with fan or catalytic converter (not for L 1 and L 15)

Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the oven and load

Protective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter) not gas tight

Manual or automatic gas supply system

Port for thermocouple in the rear wall or in the furnace door

Charging rack with closed or perforated trays for loading the furnace in two levels incl. holder for inserting/removing the trays up to a max. temperature of 800°C and a max. loading weight of 2 kg for the L(T) 9/11 respectively 3 kg for the L(T) 15/11

*This is designed to be a representation of the features available for this range. For more technical information and information on additional equipment please consult the brochure and reach out for a quote. This furnace features no safety technology for processes which produce combustible mixtures, for example debinding. If the furnace is still used for such processes despite this fact, the concentration of organic gas mixtures in the furnace must never exceed 3% of the lower explosion limit (LEL). This pre-requisite applies not only to normal operation but, in particular, to exceptional situations such as process disruptions (caused, for example, by the failure of a power unit). You must ensure that the furnace is adequately ventilated and vented. *
