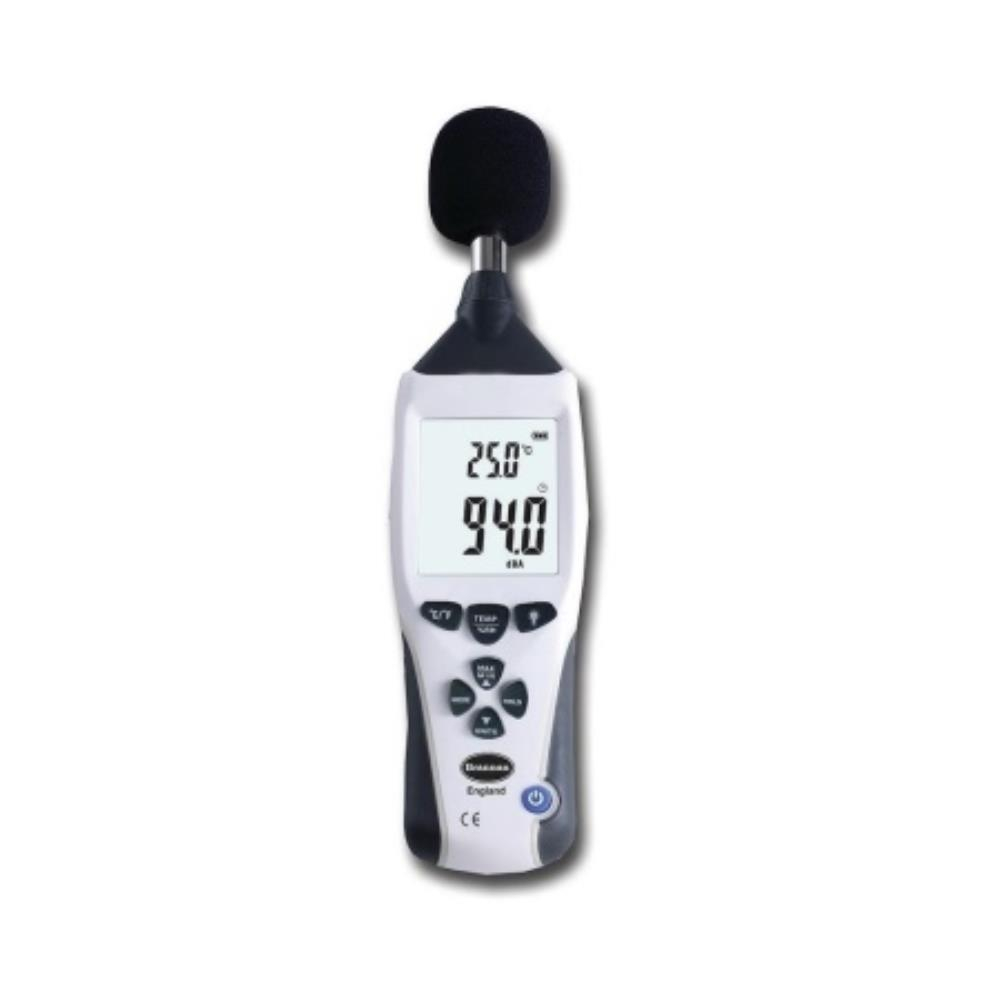

Brannan Professional Sound Level Meter with Case

Stock Code: 1435845
Manufacturer Part No: ELE1002

Professional meter to measure sound level with analogue AC/DC outputs for connection to frequency analyser or X-Y shaft recorder.

A/C frequency weighting

Max/min record

Time and date display

Over/under input alarm

Supplied with calibration certificate in heavy duty carry case

Applied standard: IEC 61672-1 Class 2

Measuring level range: Lo: 30 to 80 db; Med: 50 to 100db; Hi: 80 to 130db; Auto: 30 to 130db

Operating conditions: -20 to 60°C ﹤ 90%RH (non-condensing)

Storage conditions: -30 to 70°C ﹤ 75%RH

Accuracy: 1.4db

Resolution: 0.1db

Frequency range: 31.5hz to 8khz

No detailed specifications are available for this product.
