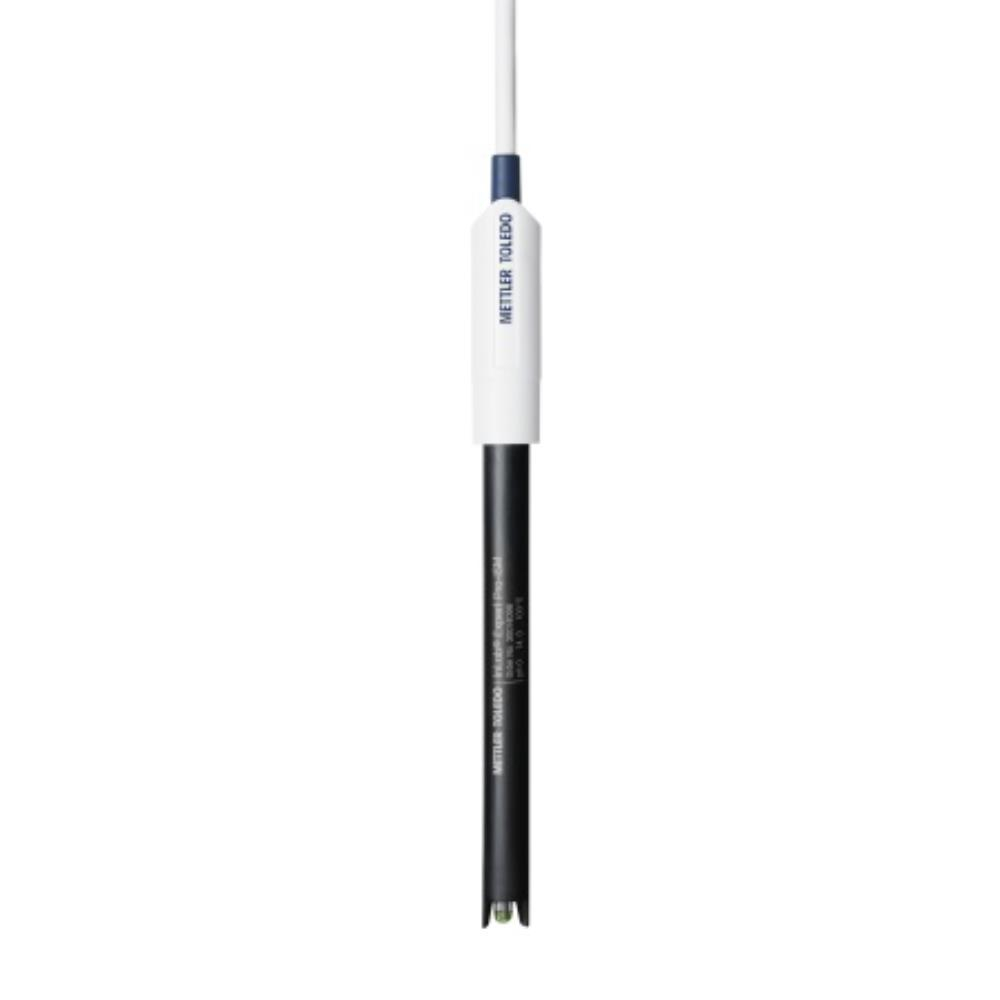

Mettler InLab Expert Pro pH-combination open junction electrode 120mm length

Stock Code: 2811239
Manufacturer Part No: PHE0306

Order Now for 3 day delivery

Descriptions

The InLab® Expert Pro electrode has been designed with long life in mind.

The fine-pored ceramic junction used in conventional electrodes can easily become contaminated in critical media such as suspensions and wastewater. In contrast the InLab® Expert Pro electrode with a solid polymeric electrolyte requires no junction at all. As a result these sensors are particularly insensitive to contamination.

The reference electrode on these sensors is in direct contact with the measured medium by means of two open junctions, hence there is no junction to block. In addition, the high grade plastic (PEEK) shaft offers a high level of chemical resistance and robustness. Service life and measurement accuracy are further improved by the ARGENTHAL™ reference system which reduces loss of silver chloride from the reference wire at differing sample temperatures.

High grade plastic shaft (PEEK)

Polymer electrolyte XEROLYT®

Open junction

ARGENTHAL™ reference

Integrated temperature sensor

pH-range 0 ... 14 Temperature range °C 0 ... 100 Response time (98% between pH 4...7) < 20 sec. Shaft material PEEK Membrane resistance (25 °C) < 250 MOhm Temperature probe NTC 30 kOhm Reference system ARGENTHAL™ Reference electrolyte XEROLYT® Polymer Shaft length 120 mm Shaft diameter 12 mm Cable and connections 1.2 m, BNC/RCA (Cinch) Type of membrane glass U Storage longterm FRISCOLYT-B® (51340053) in watering cap Storage shortterm 3 mol/L KCl, buffer pH 4 or 7
