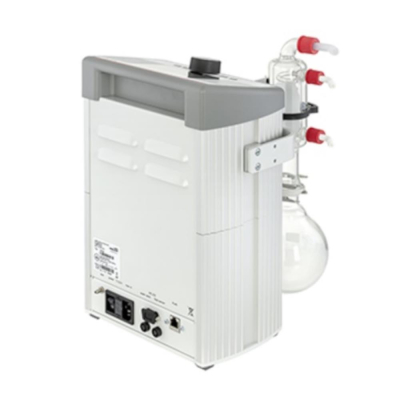

Welch LVS 105 T -10 ef+ Automated Diaphragm Vacuum System

Stock Code: 4031426
Manufacturer Part No: PUM4020

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

The LVS 105 T -10 ef+ system is specially designed for solvent distillation / evaporation applications and comprises of a chemical duty diaphragm pump and VCpro 600 series digital controller. Liquid separator and exhaust emissions condenser for optimal solvent recovery are also included. Designed for chemical applications all wetted parts are made of high quality chemically resistant materials and clear plastic coated glassware.

The chemical resistant diaphragm pump (MPC series) provides a deep stable vacuum <2mbar, and is speed controlled, using the ecoflex control, to ensure an accurate and smooth evaporation without bumping and foaming. The VCpro 600 series controller has manual, automatic and fully programmable modes for novel processes. Whether in automatic mode or manual mode, the controller automatically adjusts the pumping speed to match the vapor load generated by the processes.

Vacuum controller with manual, automatic and fully programmable modes
Password protection for user and administrator levels
Remote control / monitoring is also possible by LAN or RS232 connection
Multilingual 5″ high contrast display with light/dark mode for clear readability
Process data can be logged and downloaded for record keeping
Tactile buttons for ease of programming
Self-cleaning cycle to remove solvents in the pump
Automatic distillation
Accurate 1.5 torr vacuum
Very quiet running
Inlet catch-pot to protect pump from ingesting liquid
Compact and portable
Save energy with ecoflex speed control - GREEN by design
Fast process times - up to 40% increase in evaporation rates
