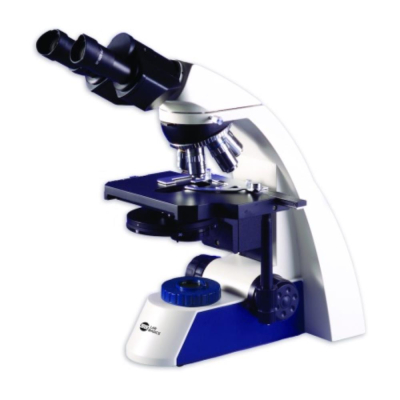

SLS Lab Basics Magnum Binocular Compound Microscope with 4x 10x 40x and 100x Infinity Corrected Plan

SLS Lab Basics Magnum Binocular Compound Microscope with 4x 10x 40x and 100x Infinity Corrected Plan

Stock Code: 3652467
Manufacturer Part No: MIC0122
Order Now for 28 day delivery
Click Add to Quote for price and delivery
Quantity: - +

The Magnum series of microscopes is based on a robust T shaped base design to ensure maximum stability with modern ergonomic features to allow for prolonged routine viewing on a daily basis. The series offers Planachromatic and Planachromatic positive phase objectives and a Trinocular version to allow for the attachment of a digital camera system for recording and analysing the image under examination.

  • Binocular or Trinocular option available
  • Eyepiece: 10x/20mm wide field
  • Available with Planachromatic and Planachromatic positive phase objectives (CCS optics): 4X, 10X; 40X spring loaded, 100X (oil) spring loaded
  • Precondenser with field diaphragm
  • Condenser: Brightfield Abbe NA 0.9 (1.25 oil), iris diaphragm and filter holder, rack and pinion focussing adjustment
  • Stage: 210 x 410mm, 90mm transversal movement and 60mm longitudinal, nonius reading upto 0.1mm
  • 20W/6V halogen bulb

No detailed specifications are available for this product.

There are no downloads for this product.
