Olympus Imaging Unit of CM20 cell culture incubator monitoring system

Stock Code: 3044321
Manufacturer Part No: COU6004

Order Now for 14 day delivery

Click Add to Quote for price and delivery

Quantity: - +

Descriptions

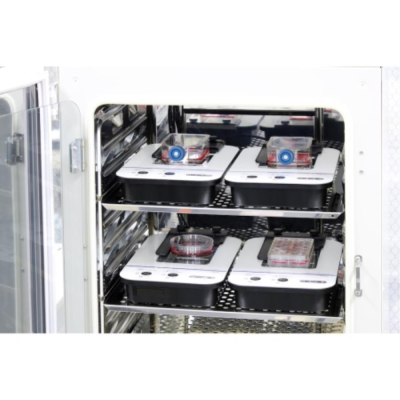

The Olympus CM20 incubation monitoring system provides quantitative data about the health and confluency of cell cultures while they are in the incubator. The imaging unit is located in the incubator and automatically scans multiple points in a culture vessel to provide data. Keep track of your cell cultures' health while they remain safely in the incubator reducing the risk of damage caused by temperature change, vibration, or contamination. There is no need to stain or peel the cultures to check their status since the system acquires data from label-free cells. With a digital record of cell growth and health, you can store, reuse and transfer your data, compare it with past results or compare it with data captured under different conditions.

Thin, compact design, can be installed in confined spaces

Compatible with a range of cell culture vessels such as Petri dishes, microplates and flasks

Imaging unit has flat-top scanner optics concept with 630nm LED epi-oblique illumination

Control unit has CM20 software installed allowing 13 user accounts, 4 users can login simultaneously

Imaging unit and control unit must be purchased separately

Up to 4 imaging units can be connected to a single control unit

Installation by an Olympus Engineer is required and charged separately.
