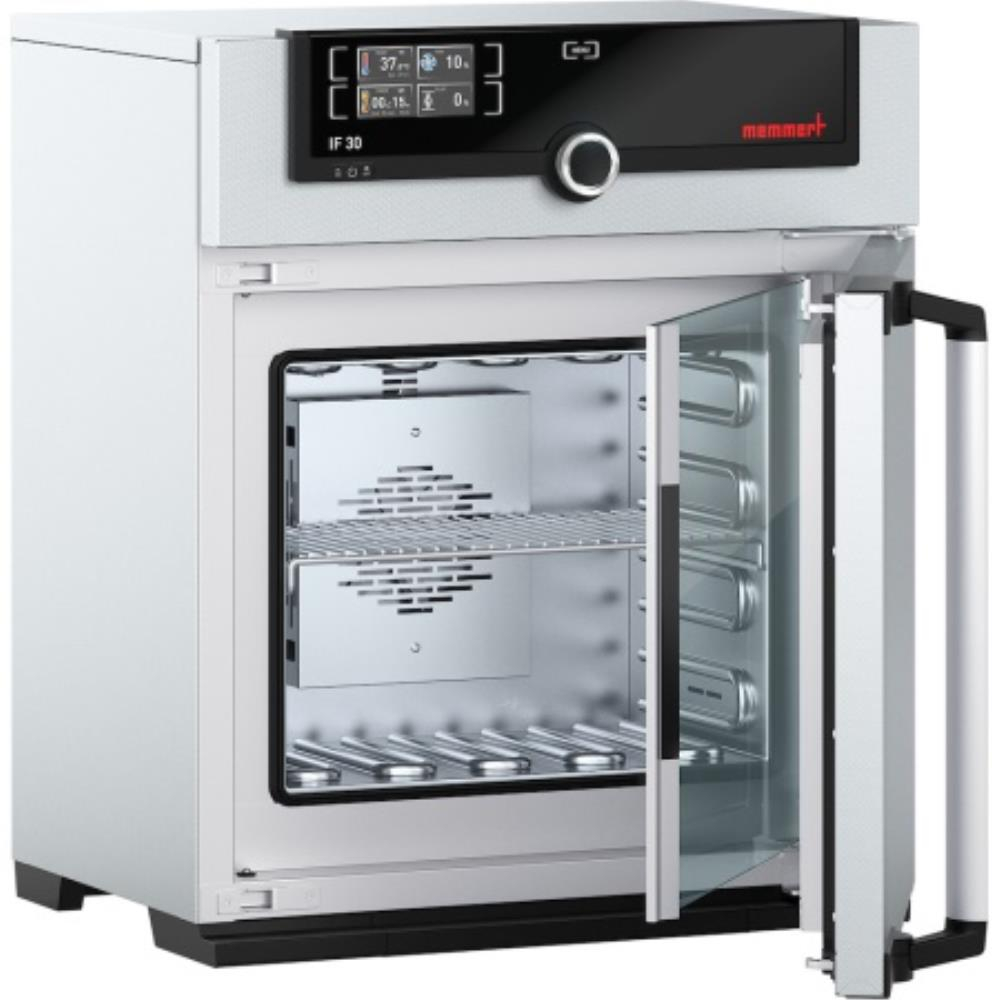

Memmert Incubator IF Forced Air Circulation SingleDISPLAY

Descriptions

Memmert incubators are at home in the world of research, medicine, pharmaceutics and food technology. Organic chamber loads require gentle heating. For this reason, the heating and control system are especially optimised for low temperatures of up to +80 °C. To prevent temperature overshoots, temperature is increased within a very narrow control range and kept exactly at the setpoint value. Models with natural convection or with forced air circulation are available.

Setting temperature range +20 °C to +80 °C

Double doors: outside stainless steel, inside glass- All-round heating on all 4 sides for excellent temperature homogeneity

Fresh air is preheated

The SetpointWAIT function guarantees that the process time does not start until the set temperature is reached at all measuring points

optional for temperature values recorded by the freely positionable Pt100 sensors inside the chamber

Internal data logger with storage capacity of at least 10 years

Works calibration certificate at +37 °C

Warranty is 3 years on parts, 1 year on labour

SingleDISPLAY:

ControlCOCKPIT with one high-resolution TFT colour touch display

Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, programme time, time zones, daylight-saving time

One temperature sensor Pt100 DIN class A in a 4-wire circuit

AtmoCONTROL software for reading out, managing and organizing the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand)

Ethernet interface for reading out protocol log and for online logging

Double overtemperature protection: Electronic temperature monitoring with freely adjustable monitoring temperature TWW/TWB (protection class 3.1 or 2), mechanical temperature limiter TB acc. to DIN 12880

TwinDISPLAY:

ControlCOCKPIT with two high-resolution TFT colour touch displays

Available parameters on the ControlCOCKPIT: Temperature (Celsius or Fahrenheit), fan speed, exhaust air flap position, program time, time zones, daylight-saving time

Two Pt100 sensors DIN class A in a 4-wire circuit for mutual monitoring, taking over functions in case of an error

HeatBALANCE function for application specific adjustment of heat output distribution (balance) between the upper and lower heating groups in an adjustment range between -50 % and +50 %

AtmoCONTROL software on a USB stick for programming, managing and transferring programs via Ethernet interface or USB port

Intuitive programming and archiving of ramps and program sequences

Synchronous visualisation of the created program sequence during programming

Application-specific repeat functions (loops) can be inserted within a temperature control program in any place

Simple creation of repeating weekly programs

ControlCOCKPIT with USB port for uploading programs, reading out protocol logs, activating the User-ID function

Displaying of already logged protocol data on the ControlCOCKPIT (max 10,000 values correspond to approx. 1 week)

Ethernet interface for reading out protocol log, uploading programs and for online logging

Multiple over temperature protection: Electronic temperature monitoring TWW/TWB (protection class 3

Specifications

No detailed specifications are available for this product.

Downloads

There are no downloads for this product.

Code	Description	Display	Price	Quantity
2776985	Memmert Incubator IF30 Forced Air Circulation SingleDISPLAY with 1 Grid 32L	SingleDISPLAY	Click Add to Quote for price and delivery	- +
2776986	Memmert Incubator IF55 Forced Air Circulation SingleDISPLAY with 1 Grid 53L	SingleDISPLAY	Click Add to Quote for price and delivery	- +
2776987	Memmert Incubator IF75 Forced Air Circulation SingleDISPLAY with 2 Grids 74L	SingleDISPLAY	Click Add to Quote for price and delivery	- +
2776988	Memmert Incubator IF110 Forced Air Circulation SingleDISPLAY with 2 Grids 108L	SingleDISPLAY	Click Add to Quote for price and delivery	- +
2776989	Memmert Incubator IF160 Forced Air Circulation SingleDISPLAY with 2 Grids 161L	SingleDISPLAY	Click Add to Quote for price and delivery	- +
2776990	Memmert Incubator IF260 Forced Air Circulation SingleDISPLAY with 2 Grids 256L	SingleDISPLAY	Click Add to Quote for price and delivery	- +
2776991	Memmert Incubator IF450 Forced Air Circulation SingleDISPLAY with 2 Grids 449L	SingleDISPLAY	Click Add to Quote for price and delivery	- +
2776992	Memmert Incubator IF750 Forced Air Circulation SingleDISPLAY with 2 Grids 749L	SingleDISPLAY	Click Add to Quote for price and delivery	- +
