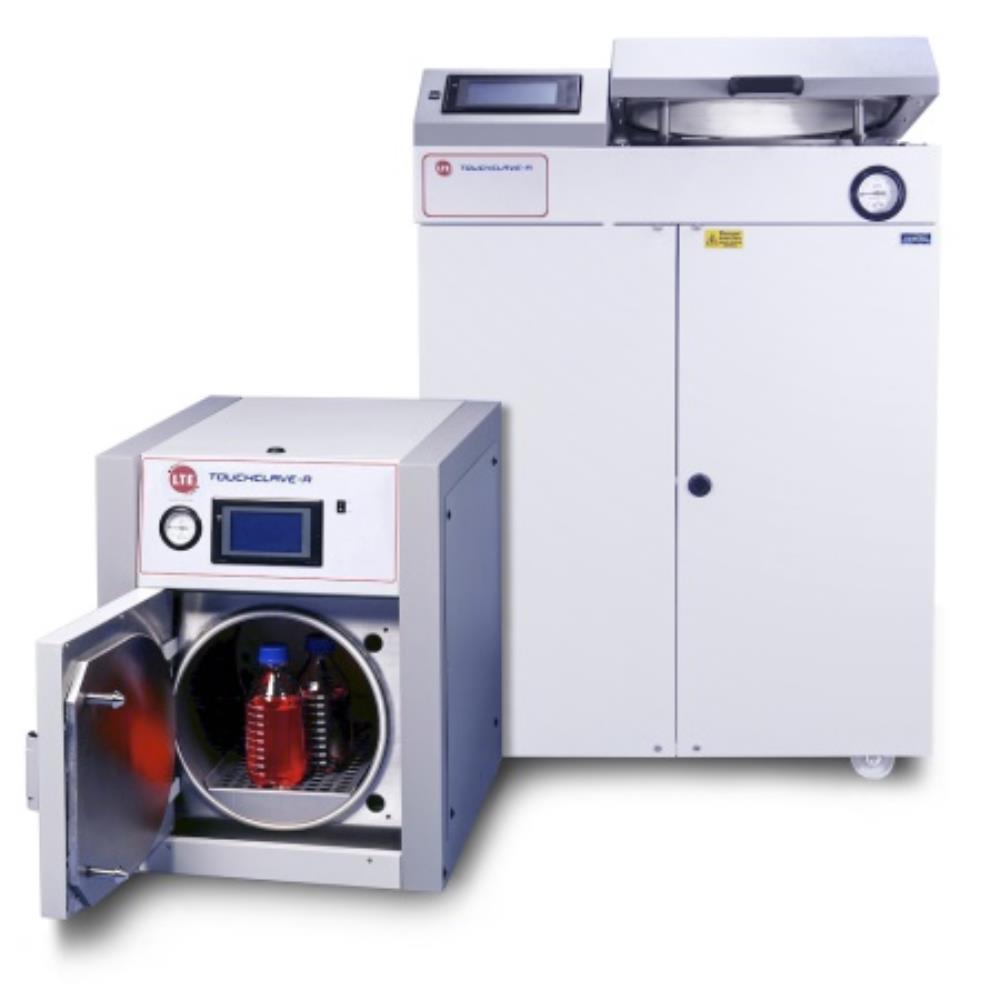

LTE Touchclave-R Front Loading Cylindrical Chamber Autoclave

LTE Touchclave-R Front Loading Cylindrical Chamber Autoclave

Ideal for many laboratory sterilisation applications, the Touchclave-R cylindrical chamber autoclave range has been designed with flexibility and reliability in mind. The Touchclave-R range is ideal for installation in laboratories which do not have access to a drain or water supply. Equipped with features and a range of options not normally seen on this type of steriliser, the Touchclave-R provides unrivalled performance and versatility.

Available in a range of sizes from our 40 Litre benchtop model up to the 160 Litre floor-standing model, with both front-loading and top-loading variants and complete with castors for easy manoeuvrability.

The Touchclave-R uses submerged heaters within the chamber to generate steam and an in-chamber sensor prevents the cycle from starting or continuing if there's insufficient water in the chamber. Water levels can be topped up and drained manually or automatically. Complete with built in safety features including a safety microswitch fitted to the "push-n-seal" door which only allows the sterilisers cycle to start if the door is properly closed and locked, additionally the door cannot be opened until the chamber has reached atmospheric pressure and temperature.

No-action 'push-n-seal' door with pneumatic seal and locking

8-program Touchscreen control system

Compact design

316L stainless steel pressure vessel

Built-in air ballast system for faster processing of liquid loads

Load-sensed process timer

Fan cooling system

Operating temperatures from 105ºC to 137ºC

Submerged heaters within the chamber generate steam. The chamber water can be topped up either manually or automatically.

All four models are floor standing and are easily moved on castors

Touchclave-R models can be modified to suit specific requirements such as operating from customers steam supplies or being fitted with an auto drain/fill system. Ask our sales office for more details

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Weight, kg Dims, w x d x h, mm Price Quantity
2726501 LTE Touchclave-R 40L Front Loading Cylindrical Chamber Autoclave 120 600 x 775 x 725
Click Add to Quote for price and delivery
-
+
2726502 LTE Touchclave-R 60L Front Loading Cylindrical Chamber Autoclave 205 625 x 1150 x 1400
Click Add to Quote for price and delivery
-
+
2726504 LTE Touchclave-R 120L Front Loading Cylindrical Chamber Autoclave 260 725 x 1350 x 1600
Click Add to Quote for price and delivery
-
+
2726506 LTE Touchclave-R 160L Front Loading Cylindrical Chamber Autoclave 290 725 x 1350 x 1600
Click Add to Quote for price and delivery
-
+
