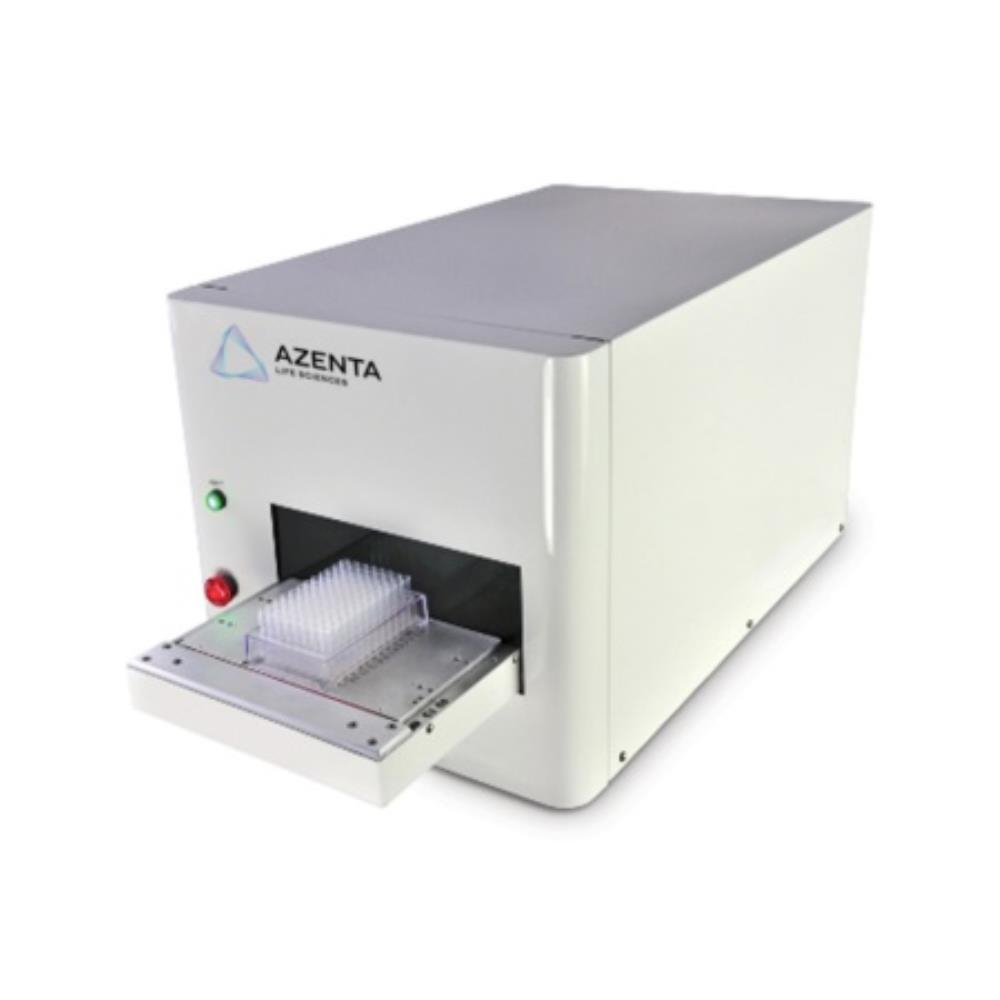

FluidX Tube Auditor 96-format for high-speed non-contact volume measurement

FluidX Tube Auditor 96-format for high-speed non-contact volume measurement

The Tube Auditor is a fast, accurate and non-invasive device used to measure sample volume in microtubes. It can also be used to detect precipitate, and therefore to help understand sample quality. It works with capped tubes ensuring that sample quality is not compromised. The Tube Auditor is compatible with 96-SBS or 48-SBS format racks. The Azenta Life Sciences Tube Auditor performs quick and easy goods-in and goods-out QA checks to help ensure that your suppliers are providing what you ordered and that your customers are receiving what you promised.

It can be used as a stand-alone unit or integrated into an automated system. If integrated into an automated system, an OPC license is required to enable remote control. It measures sample volume and detects precipitate using high-speed vision technology. The Tube Auditor gives confidence in sample quality (at both collection and output) and helps to reduce downstream costs and waste, which can arise from empty wells and precipitated samples.

High-speed measurement

Accurate to better than ±10µL; minimises downstream costs from the processing of empty tubes

Precipitate detection: increases confidence in the concentration of delivered output samples

Cap detection: helps avoid damage to liquid handling tips caused by failed de-cap operations

No need to de-cap tubes: eliminates possibility of cross contamination

Manual or remote operation: allows integration into automated system

Image storage and recall: allows audit trail and provides ability to re-assess or re-analyse the image

Volume measurement: yes

Cap detection: yes

Manual and remote operation: yes

User interface software: yes

Image capture and recall: available with "Pro" version enabled only

Precipitate detection: available with "Pro" version enabled only

Dimensions (L x W x H): 872 x 433 x 433mm

Weight: 35kg

Output data format: CSV or XML (user configurable)

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity
1974565 FluidX Tube Auditor 96-format for high-speed non-contact volume measurement
Click Add to Quote for price and delivery
-
+
1974566 FluidX Tube Auditor 96-format for high-speed non-contact volume measurement with 2D tube reader
Click Add to Quote for price and delivery
-
+
1974567 FluidX Tube Auditor 96-format for high-speed non-contact volume measurement with opc license
Click Add to Quote for price and delivery
-
+
1974568 FluidX Tube Auditor 96-format for high-speed non-contact volume measurement with 2D tube reader and
Click Add to Quote for price and delivery
-
+
