DURAN Stainless steel connector cap GL45

DURAN Stainless steel connector cap GL45

A robust and resistant hose connection system for DURAN® GL 45 laboratory and media bottles of all sizes. The bottle cap adapter simplifies the transfer of liquids within closed and sterile systems. The push-on tubing connectors on the inside and outside of the cap are suitable for connecting flexible tubing with an internal diameter of 8.0 mm. The freely rotating stainless steel middle piece allows the bottle to be opened without having to disconnect the tube connections. Connections and middle piece are made of stainless steel type 316L (1.4404/S31603). The silicone seal and the red GL 45 screw cap made of PBT ensure a liquid-tight seal. Wide temperature application range (up to 180 °C). Autoclavable (at 121 or 134 °C). With lot specific Retrace Code.

PBT

Red

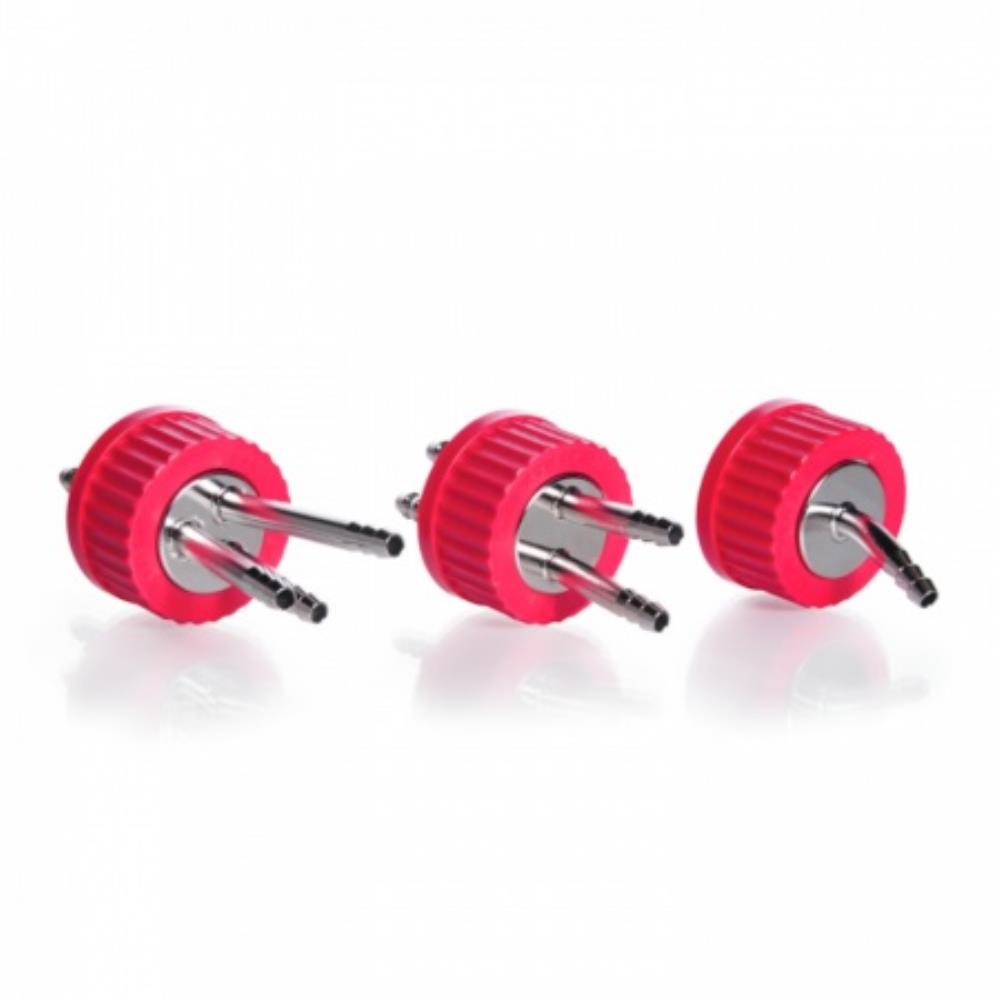

With 1, 2 or 3 ports

Manufactured from stainless steel type 316L, PBT, and silicone

Easier attachment of flexible tubing by means of barbed connectors

The one, two or three push-on tubing connectors on the upper and lower side are suitable for connecting flexible hoses with an internal diameter of 8.0 mm, such as Sani-Tech® Ultra (ULTRA-C-312) silicone tubes

The freely rotating stainless steel insert allows the bottle to be opened without disconnecting the tube connections

Simplified transfer of liquids within closed and sterile systems through the bottle cap adapter

All parts are fully welded, to prevent inclusions and cavities

Hygienic, electropolished surface for efficient cleaning and sterilization

Supplied complete with a USP 88> Class VI silicone O-ring gasket and a PBT GL 45 screw cap to provide a hygienic hermetic seal

Lot coded for tracability and lot specific certification

Replacment silicone O-ring gasket and PBT GL 45 screw open topped cap are available

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Manufacturer Price Quantity
1771313 DURAN Stainless steel 1-port connector cap GL 45 DURAN
£289.93 (exc VAT) per EACH
-
+
1771314 DURAN Stainless steel 2-port connector cap GL 45 DURAN
£286.86 (exc VAT) per EACH
-
+
1771315 DURAN Stainless steel 3-port connector cap GL 45 DURAN
£286.86 (exc VAT) per EACH
-
+
