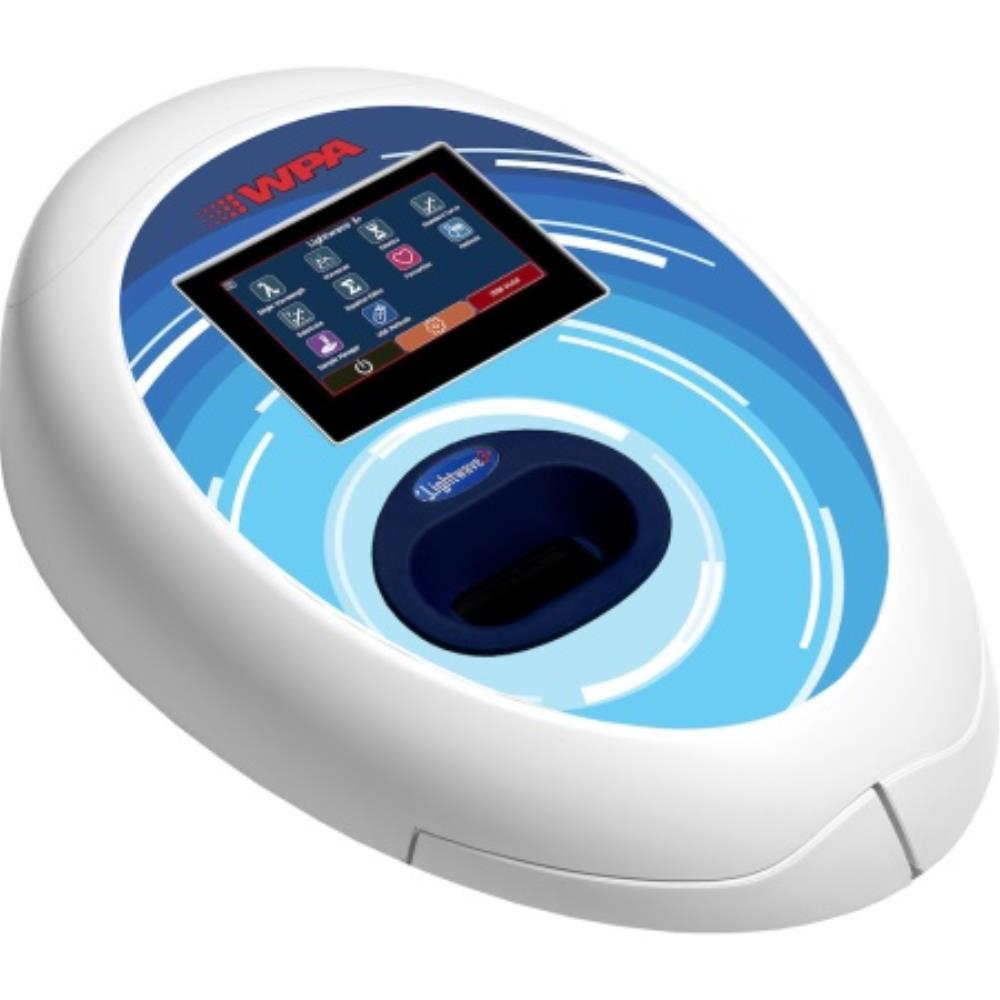

Biochrom WPA Lightwave 3+ Colour Touchscreen UV-Vis Spectrophotometer

Biochrom WPA Lightwave 3+ Colour Touchscreen UV-Vis Spectrophotometer

The Biochrom WPA Lightwave combines ease of use with flexibility, and the novel optics require no lid or moving parts and use a Xenon source for high energy performance with longer lamp lifetime. Compact footprint saves valuable bench space. This instrument has a 2 year warranty and the Xenon lamp has a 3 year warranty. The Lightwave 3+ is a higher resolution 3nm bandwidth version.

Powerful and flexible

The instrument includes a large wide view display and in-built software providing flash scan, fixed wavelength measurements, kinetics and concentration with comprehensive graphics capability plus the ability to store up to 90 methods. On peak confirmation is also a feature of the flexible software. Concentration may be measured using either a factor, single point calibration, multi-standard curves or alternatively there is a multi-wavelength mode where equations using absorbance values may be used for ratio calculations. Samples may be measured in 10, 20 or 40mm pathlength cells (glass, quartz or disposable).

Flexible data export options

All instruments have a USB port to download result data to a flash drive. Alternatively, results may be printed to an optional integrated graphical printer for a permanent record or exported via a USB cable connection to a suitable PC running Print Via Computer (PVC) software for advanced reporting and data storage or the optional wireless Bluetooth® accessory.

Split beam (RBC) UV/vis spectrophotometer covering 190 - 1100nm (choose from 3 or 5nm bandwidth versions)

Accepts 10, 20 and 40mm pathlength cuvettes

Compact, and excellent value for money compared to conventional systems

Wavelength scanning, kinetics and concentration functionality with full graphics display

Wavelength range: 190 to 1100 nm

Monochromator: flat grating

Wavelength calibration: automatic upon switch on

Beam height: 15 mm

Spectral bandwidth: 5nm or 3nm for '+' models

Wavelength accuracy: ±2nm

Wavelength reproducibility: ±1nm

Light source: xenon flash lamp

Detector: twin CMOS array

Photometric range: -0.300 to 2.500A, 0.3 to 199 %T

Photometric linearity: ±1.3 % or ±0.008 A whichever is greater at 546nm

Photometric reproducibility: ±0.002A to 0.5A at 546nm

Stray light: ﹤0.5 %T 340nm

Stability: ±0.01A/h at 340nm

Noise: ±0.005 peak to peak ±0.002 RMS

Dimensions: 260 x 390 x 100mm

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Dims, w x d x h, mm Price Quantity
4082988 Biochrom WPA Lightwave 3+ Colour Touchscreen UV-Vis Spectrophotometer 3nm Bandwidth with USB Port 260 x 390 x 100
Click Add to Quote for price and delivery
-
+
4082989 Biochrom WPA Lightwave 3+ Colour Touchscreen UV-Vis Spectrophotometer 3nm Bandwidth with USB Port an 260 x 390 x 100
Click Add to Quote for price and delivery
-
+
4082990 Biochrom WPA Lightwave 3+ Colour Touchscreen UV-Vis Spectrophotometer 3nm Bandwidth with USB Port an 260 x 390 x 100
Click Add to Quote for price and delivery
-
+
4082991 Biochrom WPA Lightwave 3+ Colour Touchscreen UV-Vis Spectrophotometer 3nm Bandwidth with USB Port In 260 x 390 x 100
Click Add to Quote for price and delivery
-
+
