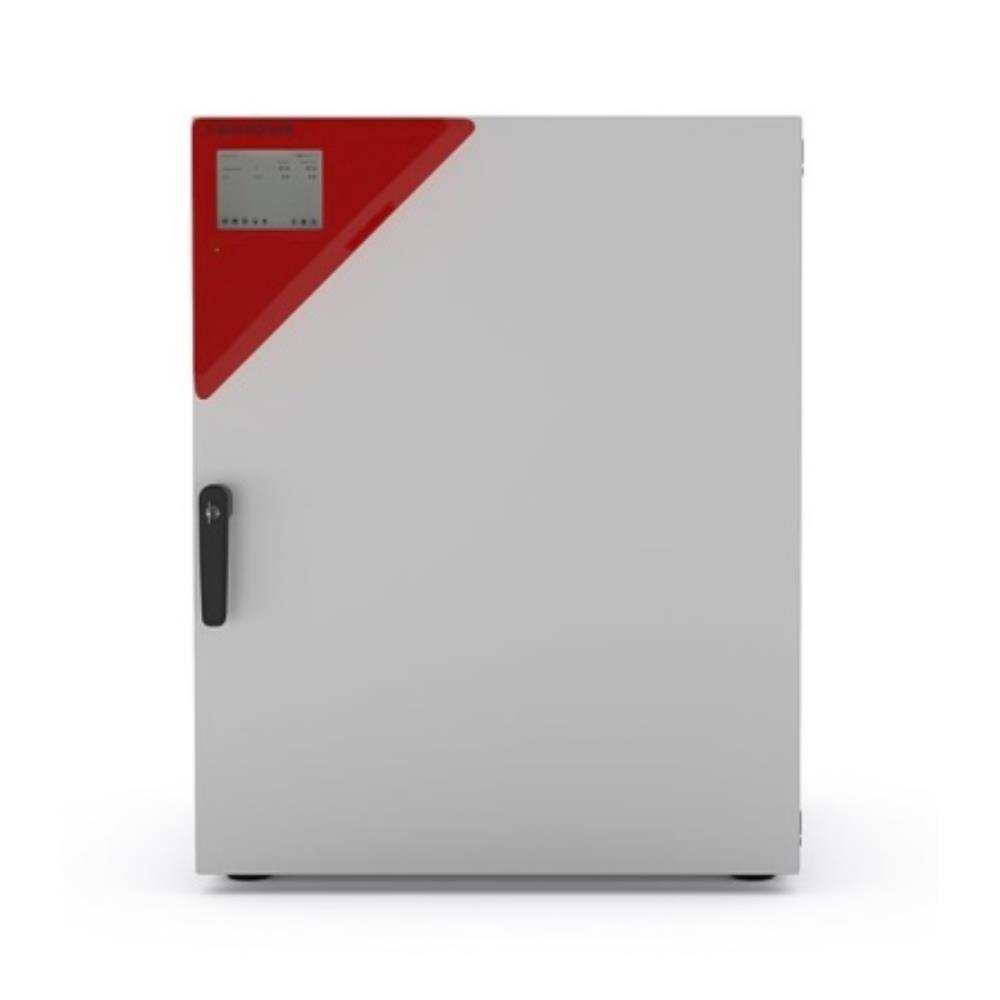

BINDER CB170 CO2 Incubator

BINDER CB170 CO2 Incubator

Benefits

  • Maximum usable space with minimal footprint and excellent ease of use
  • Minimum risk of contamination thanks to uncompromising hot-air sterilization
  • Fanless, easy-to-clean hygienic interior
  • Stable pH values thanks to drift-free CO2 IR sensor technology
  • Low evaporation of the medium due to high levels of humidity and quick recovery time

Important characteristics

  • Temperature range: +4°C above ambient temperature to +60°C
  • Humidity range: 90 to 95% RH
  • CO2 control range: 0 to 20 vol% CO2
  • O2 control range: 0.2 to 20 vol% O2 for versions with O2 control
  • Alternative O2 control range: 10 to 95 vol% O2, option for versions with O2 control
  • Humidity control range: 50-95% relative humidity for model variants with active humidification
  • Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
  • Hot-air sterilizable CO2 sensor with single-beam infrared technology
  • CO2 gas-mixing jet with Venturi effect
  • Intuitive touchscreen controller
  • Internal data recording, can be read out in open format via USB interface
  • Optimized double-pan humidification system with condensation protection
  • 170 liters of extra space in the interior while maintaining the same footprint
  • Stacking height of just 1.80m for easy use of the top unit
  • Fail-safe CO2 automatic diagnosis system for protecting the pH of cell cultures
  • DuoDoor™ system: Unit door and glass door can be opened with one handle
  • Lockable door handle
  • Computer interface: Ethernet
  • Zero-voltage alarm contact
  • Tightly sealed inner door made of tempered safety glass
  • 3 perforated shelves, stainless steel
  • Units are stackable with stacking adapter

Optional equipment

  • Versions with O2 control range: 0.2 to 20 vol.% O2 or 10 to 95 vol.% O2
  • Versions with humidity control range: 50 to 95% RH due to active humidification
  • Convenient water supply with reusable tubular bags,
  • pre-filled single-liter water bottle, or water container set with magnetic holder, for versions with active humidification
  • Multi-sectional glass doors with special shelves for dividing up the space to accommodate different experiments
  • Stacking adapter for secure, space-saving installation
  • CO2 gas tank changer for connecting two gas tanks to one or two incubators
  • CO2 shaker with corrosion-resistant components in a stainless-steel housing
  • APT-COM Multi Management Software - for managing, recording, and documenting unit parameters
  • Services - wide range of services to ensure that the unit functions correctly

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Price Quantity
1334100 BINDER CB170 CO2 Incubator 170L
Click Add to Quote for price and delivery
-
+
1334101 BINDER CB170 CO2 Incubator with O2 Control 170L
Click Add to Quote for price and delivery
-
+
1334102 Binder Incubator CO2 Cell/Tissue Culture CB170 with Humidity Alert 170L
Click Add to Quote for price and delivery
-
+
1334103 Binder Incubator CO2 Cell/Tissue Culture CB170 with Oxygen Control and Humidity Alert 170L
Click Add to Quote for price and delivery
-
+
