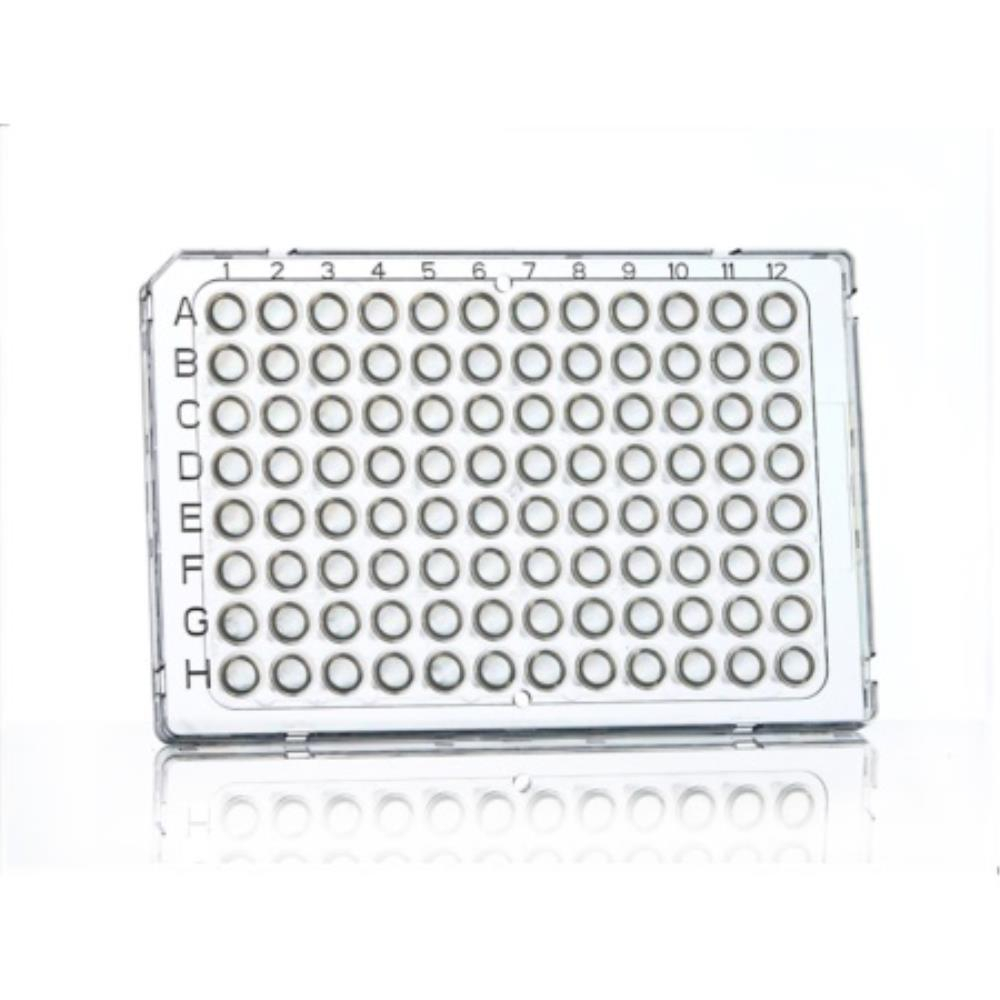

Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted ABI Fastplate Style Low Profile Clear

Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted ABI Fastplate Style Low Profile Clear

This semi-skirted low profile plate is recommended for use with ABI® Fast block thermal cyclers. The low profile wells of this plate are shorter than "standard" profile wells, which decrease the "dead space" between the heated lid of the thermal cycler and the sample in the well. This eliminates condensation forming on the side wall of the tubes, preventing reduction in PCR volume and increasing the efficiency of the reaction. This is especially recommended for reaction volumes below 20µL. The rigid polycarbonate skirt of this design eliminates warping and distortion during PCR, and makes it ideal for use with robotic systems. Its skirt also allows for labelling or barcoding.

Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen

Stackable

Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results

﹤0.1mL (100µL) working volume, 0.2mL (200µL) total well capacity

Rigid polycarbonate frame for added mechanical stability

Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results

Improved seal integrity due to thermal stability of frame

Alphanumeric grid reference to aid well and sample identification

Compatible with ABI® Fast block thermal cyclers

Recommended for low volume PCR

Compatible with standard multichannel pipettes

Ideal for use with robotic systems

Available with clear polypropylene wells with a clear polypropylene frame (PCR1194, PCR1196 & PCR1200), or white wells for optimum signal-to-noise ratio when using fluorescent based assays (PCR1198), or as a clear frame with frosted wells for use with ABI®/LifeTechnologies® qPCR instruments (PCR1202 & PCR1204)

Combi pack available (PCR1200) with 50 x clear well, clear frame plates and 50 x optically clear windowed qPCR seals

No detailed specifications are available for this product.

There are no downloads for this product.

Code Description Pack Manufacturer Price Quantity
1021450 Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted ABI Fastplate Style Low Profile Clear 50 4TITUDE
£371.43 (exc VAT) per PK50
-
+
1021451 Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted ABI Fastplate Style Low Profile Clear 10 4TITUDE
£59.79 (exc VAT) per PK10
-
+
1021454 Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted ABI Fastplate Style Low Profile Clear 50 4TITUDE
£301.79 (exc VAT) per PK50
-
+
1021455 Azenta Life Sciences FrameStar 96 Well PCR Plate Semi-Skirted ABI Fastplate Style Low Profile Clear 10 4TITUDE
£59.79 (exc VAT) per PK10
-
+
